產品特色Features

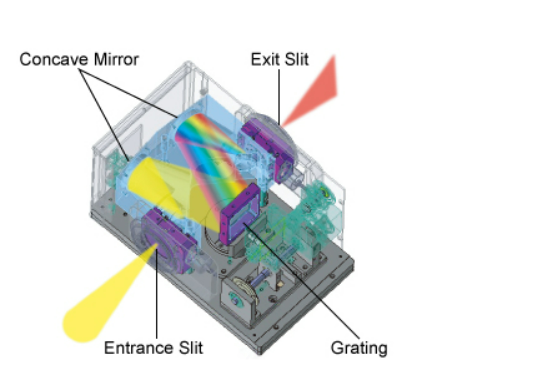

採用Czerny-Turner 設計的快速單色儀。

產品特點:

◆使用我們的光源將波長從 250nm 調諧到 900nm

◆單色光(解析度:2.6nm)

◆快速的單色儀(F/2.8)

◆可調節的狹窄寬度

◆可選擇火焰波長

◆外接觸控面板控制器

MAX-303 + CMS-100 Movie 1

如何連接 >MAX-303 和 CMS100

MAX-303 + CMS-100 Movie 2

調諧波長 MAX-303 + CMS-100

產品規格Specifications

Model	CMS-100
Optical configuration	Czerny-Turner
Focal length	100mm
F-number	F/2.8
Wavelength range	220 - 900nm (Effective range)
	*It depends on the grating.
	0 - 900nm (Settable range)
Reciprocal linear dispersion	8.3nm/mm (at 550nm)
Resolution	1) 2.6nm 2) 4.3nm 3) 8.6nm
	*It depends on the slit width. (Calculated value at 546.1nm)
Wavelength accuracy	±1.0nm *Room temperature: 25 deg C
Wavelength reproducibility	±0.2nm *Room temperature: 25 deg C
Minimum step	0.1nm (Pulse motor drive)
Grating	Size 40 x 40mm
	Clear aperture 36 x 36mm
	Groove density 1200g/mm
	Blaze wavelength 250nm, 400nm, 500nm *Select 1 type.
Slit	W x H / 1) 0.3 x 3.0mm 2) 0.5 x 3.0mm 3) 1.0 x 3.0mm
	*It can be selected automatically by controller.
Scanning method	Sine-bar
Driving method	Pulsed motor drive
Input voltage	DC12V
	AC adapter input range AC100 - 240V 50/60Hz
Apparent power	Less than 15VA (AC100V/50Hz)
	Less than 15VA (AC240V/50Hz)
Remote control	RS-485 and adapter cable
Recommended environment	Temperature 10 - 35 deg C
	Humidity less than 70% *Avoid condensation
Dimensions	Main unit 231(W) x 175(D) x 143(H)mm
	Controller 160(W) x 100(D) x 47(H)mm
Weight	Main unit 5.6kg
	Controller 0.7kg (Not including cable)
