Optogama Plano-Concave Lenses代理

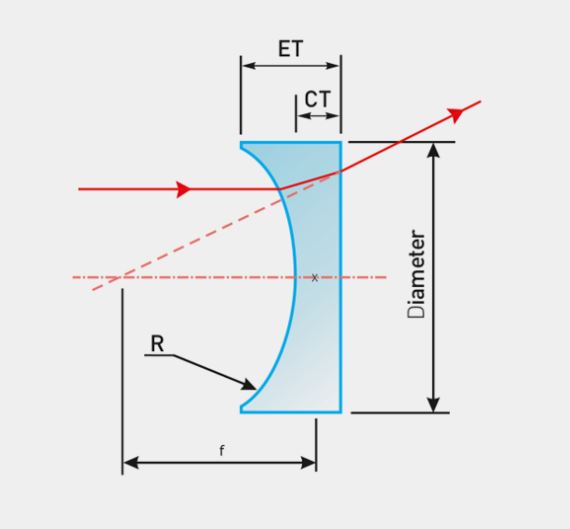

Plano-concave spherical lenses have one plano and one spherical concave surface, while their focal lengths are negative. These lenses provide best performance when used for 5X to infinite-conjugate ratio applications, e.g. collimating a convergent beam, diverging a collimated beam. To prevent spherical aberrations collimated beam should always be incident on curved lens surface and vice versa.

Main features

• Fabricated from high-quality UV grade fused silica and BK7 glasses
• Standard diameters are ⌀12,7 mm and ⌀25,4 mm
• Focal length selection from -20 mm to -10000 mm
• Antireflective coatings, custom substrate material, dimensions and focal lengths available upon request

Application examples

• Collimating a convergent beam
• Diverging a collimated beam
• Relay imaging
