Optogama Plano-Convex Lenses代理

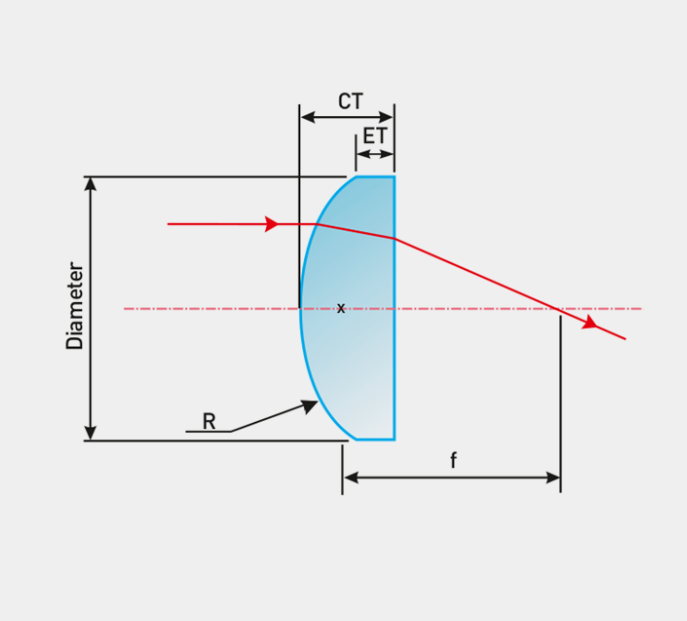

Plano-convex spherical lenses have one plano and one spherical convex surface, while their focal lengths are positive. These lenses provide best performance when used for 5X to infinite-conjugate ratio applications, e.g. focusing a collimated light beam or collimating beam from a point source.

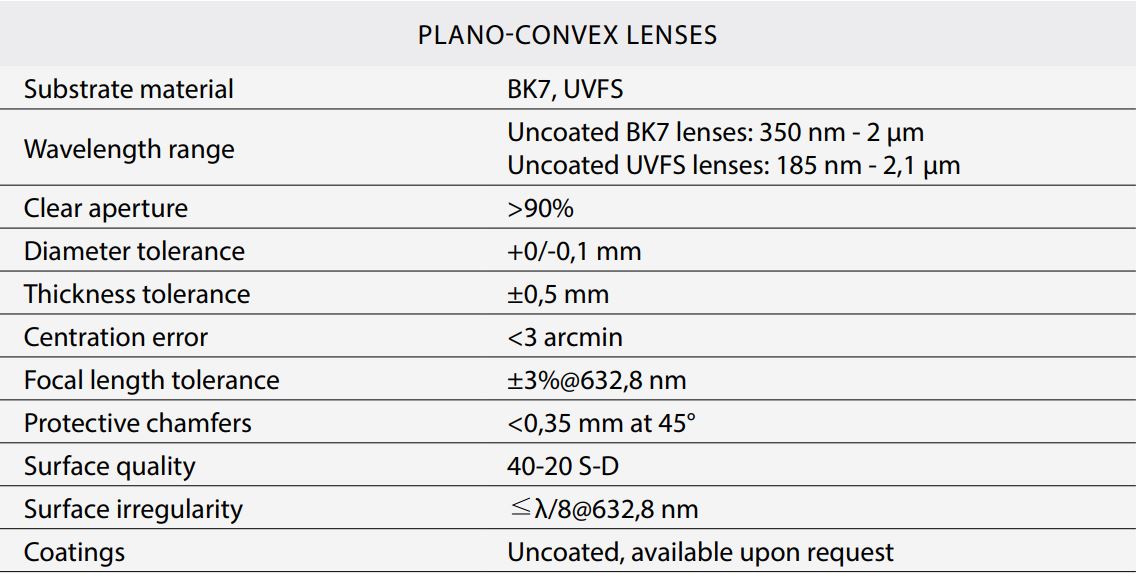

Main features

• Fabricated from high-quality UV grade fused silica and BK7 glasses
• Standard diameters are ⌀12,7 mm and ⌀25,4 mm
• Focal length selection from 20 mm to 10 000 mm
• Antireflective coatings, custom substrate material, dimensions and focal lengths available upon request

Application examples

• Focusing a collimated beam
• Collimating beam from a point source
• Beam expanders and collimators
