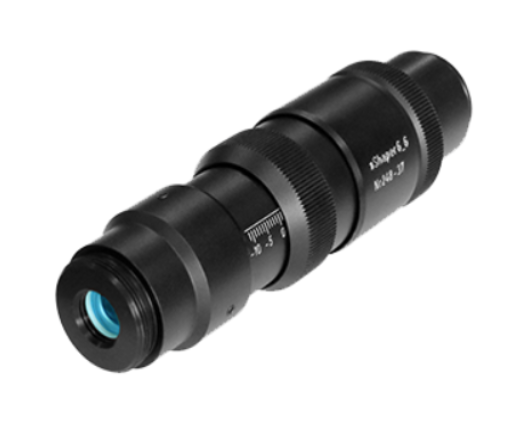

PiShaper 6_6_Series廠商, PiShaper 6_6_Series台灣代理商公司│維佳科技

產品特色Features

High efficient laser beam shaping systems

適用於所有雷射波長：紫外線、可見光、近紅外線和中紅外線

Applications:

● Microscopy	● Confocal microscopes
● Holography	● Interferometry
● MOPA lasers	● Free Electron Lasers (FEL)
● Laser ablation	● Illumination of Spatial Light Modulators (SLM)
● Micromachining	● Particle Image Velocimetry (PIV)
● Welding	● Marking

產品規格Specifications

Technical Specifications

Common for πShaper 6_6 models
Type	Field mapping beam shaper as a telescope of Galilean type, without internal focus
Input beam	Collimated TEM00 or multimode with Gaussian or similar irradiance profile
Output beam	Collimated Flat-top, uniformity within 5% High edge steepness
Other features	Achromatic for design wavelengths Compact design suitable for scientific and industrial applications Conserving flatness of the beam wavefront Long working distance
Overall dimensions	Diameter Length
Mounting	M27x1 thread, at entrance and exit
Weight
πShaper 6_6 features
Model	Input 1/e² Diameter, mm	Output FWHM Diameter, mm	*Optimum spectrum, nm**	Applications based on lasers
_NIR	5.9 - 6.0	6.0	1100 - 1700	near-IR
_VIS	5.9 - 6.0	6.0	405 - 680	He-Ne, He-Cd, lasers of visible band
_NUV	5.9 - 6.0	6.0	335 - 560	2nd (532), 3rd (355) Harmonics of Nd:YAG, UV and Violet
_1.9-2.8	6.1 - 6.2	6.4	1900 - 2800	mid-IR
_2.05	6.4 - 6.5	6.4	1900 - 2160	mid-IR
_1550	6.4 - 6.5	6.2	1500 - 1600	near-IR
_1064	6.4 - 6.5	6.1	1020 - 1100	Nd:YAG, Fiber and other near-IR
_TiS	6.4 - 6.5	6.0	700 - 900	Ti:sapphire, near-IR
_532	6.3 - 6.4	5.8	510 - 550	2nd Harmonics of Nd:YAG, similar lasers
_350	6.3 - 6.4	5.6	330 - 380	3rd (355) Harmonics of Nd:YAG lasers
_325	6.3 - 6.4	5.6	305 - 345	He-Cd, UV
_266	6.3 - 6.4	5.2	250 - 275	4th (266) Harmonics of Nd:YAG lasers
* - according to AR-coatings applied

πShaper 6_6_350_C features
Type	Collimator without internal focus
Input beam	TEM00 or multimode with Gaussian or similar intensity profile Divergent Divergence 75 mrad (1/e²) Input Dia 6 mm (1/e²)
Output beam	Collimated Flat-top, uniformity within 5% Diameter 6 mm High edge steepness
Other features	Achromatic for design wavelengths Compact design suitable for scientific and industrial applications Long working distance
Overall dimensions	Diameter 39 mm Length 133 mm
Optimum	330 - 380 nm
Design wavelengths	350 nm
Applications based on	3rd (355) Harmonics of Nd:YAG laser
Mounting	M 27x1
Weight	250 g
