- Focal-piShaper 9_XXX_Series
- Model: Focal-piShaper 9_XXX_Series
- 品牌:AdlOptica
產品特色Features
High efficient laser beam shaping systems for focused beams
With these unique tools the long-standing wish to manipulate the shape of focused beams becomes a reality. With nearly 100% efficiency the Focal-πShaper produces various profiles:
- "Flattop"
- "Reverse Gauss"
- "Donut"
- "Trident"
產品規格Specifications
Technical Specifications
| Common for all Focal-πShaper 9_XXX models: | ||||
| Type | Telescope of Galilean type ( without internal focus) | |||
| Input beam | - TEM00, Collimated or low divergence - Diameter < 16 mm - Optimum 2ω diameter for a Gaussian beam 4...6 mm (1/e²) |
|||
| Output beam | - Collimated or low divergence - Profile is optimized for Intensity distribution manipulation in focal plane of a diffraction limited lens - Diameter < 16 mm |
|||
| Spot shape | - Round - Square, Focal-πShaper 9_XXX_q versions |
|||
| Other features | - Easy integration in equipment - Compact design suitable for scientific and industrial applications - Operation with diffraction limited focusing lenses of any type - Easy alignment - Optimized to work with scanning optics: mirror scanners, F-Θ lenses |
|||
| Mounting | External Thread M 27x1 | |||
| Weight | 200 g | |||
| Focal-πShaper 9_XXX features | ||||
| Model | Optimum spectrum, nm | Dimentions D / L, mm |
Applications based on | Max. fluence @5ns, mJ/cm² |
| _1064_HP | 1020 - 1100 | 39/104 | Nd:YAG, Fiber, near IR-lasers | 200 |
| _1940 | 1800 - 2050 | 41/110 | near IR-lasers | 100 |
| _1550 | 1450 - 1650 | near IR-lasers | ||
| _TiS | 750 - 850 | Ti:Sapphire laser, near IR lasers | ||
| _532 | 520 - 550 | 2nd (532) Harmonics of Nd:YAG | ||
| _355 | 330 - 380 | 3rd (355) Harmonics of Nd:YAG | ||
| _266 | 250 - 280 | 4th (266) Harmonics of Nd:YAG | ||
Examples of the Focal-πShaper operation

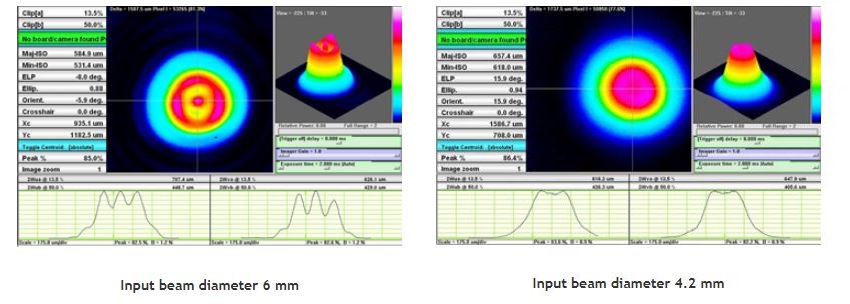

Intensity profiles of focused beams under various Focal-πShaper settings (Courtesy of Altechna)
.jpg)

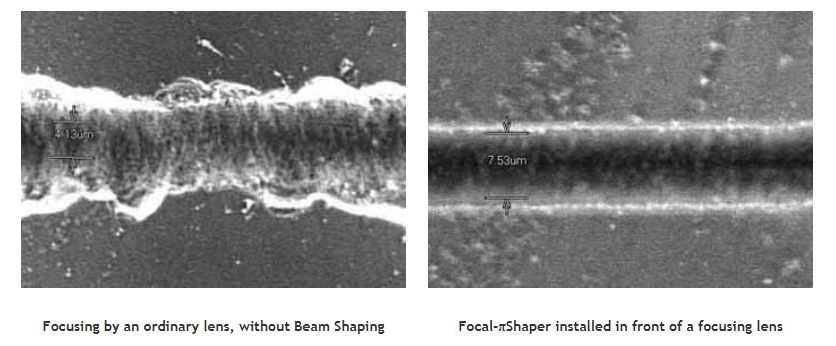

Focal-πShaper installed in front of a focusing lens (Courtesy of Altechna)
