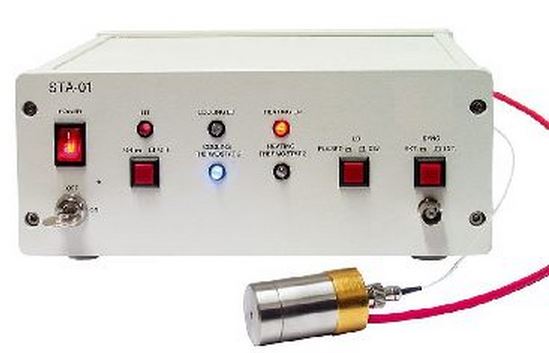

ALTECHNA Sub - nanosecond DPSS Nd:LSB micro laser, 531nm, STA-01SH-1~STA-01SH-4, STA-01-TH, STA-01-FH

產品特色Features

		TEM₀₀和脈衝光譜結構SLM
		應用:
		諧波產生器的泵源、光參量振盪器和放大器 (使用週期性地極化的 KTP或 LiNbO3晶體 )
		低同調性"白光"干涉儀
		測試和測量系統
		光學相干斷層掃描
		雙光子顯微鏡
		螢光顯微鏡

產品規格Specifications

Models	STA-01SH-1	STA-01SH-2	STA-01SH-3	STA-01SH-4
Wavelength, nm	532
Average output power (max), mW	40	25	50	20
Pulse energy, µJ	4	5	50	0.2
Pulse width (FWHM), ns	0.5	< 0.7	0.5	0.5
Repetition rate (max), kHz	10	5	1	100
Beam Profile	M² < 1.1
Pulse spectral structure	single longitudinal mode
Polarization ratio	> 100:1
Beam Waist diameter inside the laser head 1/e², µm*	25-200
Pulse spectrum FWHM, pm	< 5 (near transform limited)
Pulse to pulse energy stability RMS	< 0.5
Power stability over six hours**	< ± 1,5%
External power supply voltage, V AC	100-240
Operating temperature, °C	15 - 40
Interfaces	USB, External trigger (TTL rising edge) 1HZ...max repetition rate
Laser head dimensions:
diameter, mm	25
length, mm	76.5
Warranty	12 months or 5000 hours whichever occurs first
