1064nm 雷射二極體

1064nm laser diode

此系列光纖耦合雷射二極體可搭配 CW 或脈衝雷射二極體驅動器使用，支援低雜訊 CW 及高速奈秒級脈衝驅動。產品提供搭載 TEC 溫度控制器的開放式或整合式雷射模組，可依需求選擇。單模 1064 nm 雷射二極體在奈秒級脈衝模式下，峰值功率最高可達 2 W，並提供多模版本，CW 連續波輸出功率最高可達 10 W，適用於不同雷射光源及高精度光學應用。

產品特色

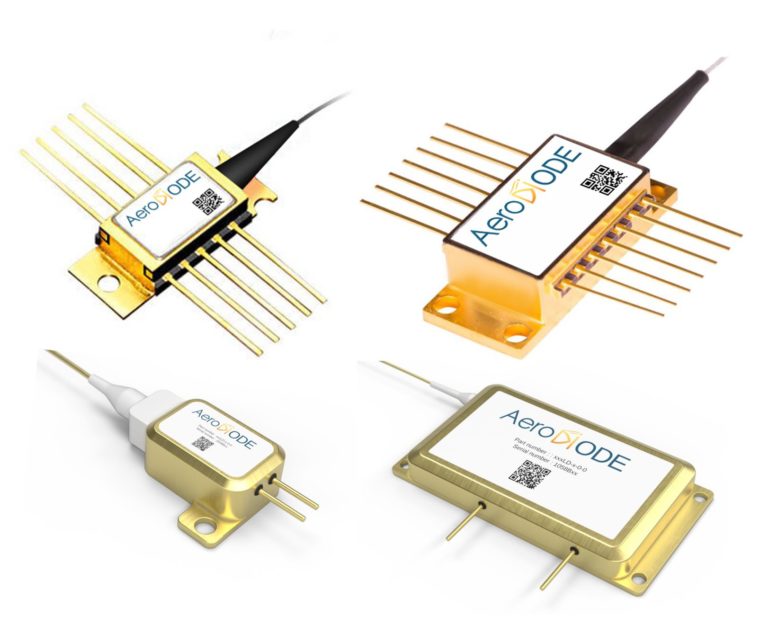

共提供 4 種型號，包括 3 款以 Bragg 光柵或 DFB 技術為基礎的單模版本，以及 1 款多模版本
單模版本 CW 連續波輸出功率最高可達 550 mW；多模版本最高可達 10 W
單模版本光纖輸出峰值功率最高可達 1500 mW
DFB 版本發射頻寬最低可達 200 kHz
脈衝寬度最短可達 1 ns
提供低雜訊 CW 連續波輸出

Laser diode + driver solutions technical performances :
	Laser Diode version :	Laser Driver version :
		CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version)	Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version)	Pulse & CW Driver -HP version - (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version)	User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs)	Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version)
Output Power CW regime (typ)	1-Fabry-Perot	700 mW	400 mW		No (only pulse)	Not compatible
	2a-DFB (optimized for pulsing)	200 mW	200 mW
	2b-DFB (optimized for CW emission)	200 mW	200 mW
	3-Broad Bragg	650 mW	500 mW	500 mW
	4-Multimode (9 W)	Not compatible				9 W
	5-Multimode (25 W)	Not compatible				25 W
	6-Multimode (100 W)	Not compatible				100 W
Output power Pulse regime (typ)	1 - Fabry-Perot	No	700 mW	1500 mW	700 mW	No
	2a-DFB (optimized for pulsing)		500 mW min (700 mW typ)
	2b-DFB (optimized for CW emission)		500 mW min (700 mW typ)
	3 - Broad FBG		950 mW	1500 mW	1000 mW
	4- Multimode (9 W)	Not applicable				10 W
	5- Multimode (25 W)	Not applicable				25 W
	6- Multimode (100 W)	Not applicable				100 W
User design nanosecond pulse shape (integrated AWG)	Any	No (On-Off driver only)			Yes (embedded AWG)	Yes but only with external analog signal
Laser diode T° range		15 - 50 °C				15 - 40 °C
Pulse duration (Ext pulse trigger)		CW only	0.5 ns - CW		0.5 ns - 5 µs	10 µs - CW
Pulse duration (Internal pulse generator)			0.5 ns - 500 ns		0.5 ns - 5 µs	No
Typ rise/Fall time ; Min pulse duration			3 (ns/A) ; 1.5 ns		< 1 (ns/A) ; 1.5 ns	few µsec
Internal rep rate adjustment			1 Hz - 4 MHz	1 Hz - 10 MHz (250 MHz Optional)	1 Hz - 20 MHz	No
Temporal jitter			< 25 ps	< 8 ps	< 2 ns
Adjustable CW current offset in pulse regime			No	Yes	No	Yes (extrenal mode)
Interface/GUI/libraries		USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python
