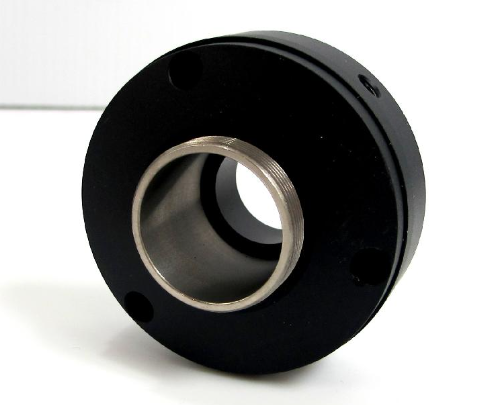

The centring cell has the two thread insert connections on each side; one for the input and one for the output. By adjusting the 3 screws in the body side, it is possible to laterally adjust one with respect to the other, either to precisely align the output to the beam or to introduce a deliberate offset. Note that the screws need to be loosened on one side before those opposite can be screwed inwards. All 3 screws must be tightened once the adjustment is made.

        •     Lateral adjustment of beam

        •     Precisely align the output beam, or introduce a deliberate offset
