IR π整形器系列
π整形器系列用於IR雷射器的高效雷射光束整形系統
該光束整形係以二氧化碳(CO2)雷射為基礎開發，為改進材料加工技術提供新的機會。
πShaper Series of high efficient laser beam shaping systems for IR lasers
Developed for applications based on carbon dioxide (CO2) lasers this beam shaping system opens new opprtunities to improve the technologies of material processing.
應用:
- 金屬和塑料的焊接
- 打標和雕刻
- 印刷
- 材料微加工
- 加工材料
- 切割
- 包覆
產品規格Specifications
技術規格
|
類型Type |
Telescope of Galilean type ( without internal focus) | ||||
|
輸入光束 Input beam |
- Collimated - TEM00 or multimode with Gaussian or similar intensity profile |
||||
|
輸出光束 Output beam |
- Collimated - Flat-top, uniformity within 5% - High edge steepness |
||||
|
其他特色 Other features |
- Compact design suitable for scientific and industrial applications - Materials of lenses ZnSe - Long working distance - Option of water cooling |
||||
|
應用基礎上 Applications based on |
CO2, Quantum Cascade lasers | ||||
| 特色Features | |||||
| 型號Model | Input 1/e² Ø, mm | Output FWHM Ø, mm | Dimentions D / L, mm |
Mounting | Optimum spectrum, nm |
| πShaper 7_7 | |||||
| _10.6 | 7.0 | 7.0 | 39 / 135 | M27x1 | 10000 - 11000 |
| _9.4 | 9000 - 10000 | ||||
| _6-8 | 6000 - 8000 | ||||
| _3.6-4.8 | 3550 - 4800 | ||||
| πShaper 12_12 | |||||
| _10.6 | 12.0 | 12.0 | 49 / 271 | Input: M27x1 Output: M33x1 Adaptor M33x1 -> M27x1 |
10000 - 11000 |
| _9.4 | 9000 - 10000 | ||||
| _6-8 | 6000 - 8000 | ||||
| _3.6-4.8 | 3550 - 4800 | ||||
| _5.1 | 11.6 - 11.8 | 11.3 | 49 / 271 | Input: M27x1 Output: M33x1 Adaptor M33x1 -> M27x1 |
5000 - 5200 |
Basic principles of πShaper operation:
- πShaper transforms Gaussian or similar intensity distribution of source laser beam to a flattop one;
- TEM00 or multimode with Gaussian or similar intensity profile can be applied;
- Galilean design, thus there are no intermediate focusing of a beam;
- With changing the size of input beam the output beam profile changes as well, see description here;
- When changing the shape of input beam it is possible to adapt the πShaper to provide flattop output profile, this adaptation is realized through changing the diameter of source beam; description of this adaptation is presented here.

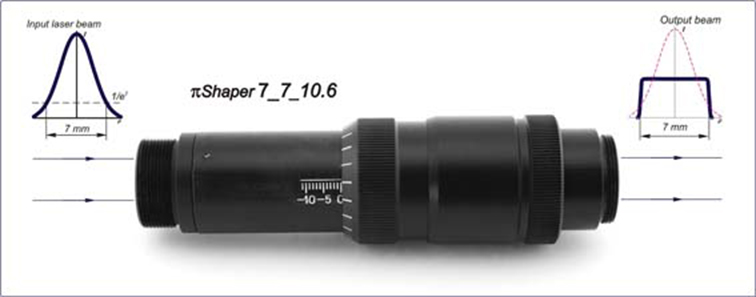

Operation principle on example of πShaper 7_7_10.6
