- 976nm 雷射二極體
- Model: 976nm laser diode
- 品牌:Aerodiode

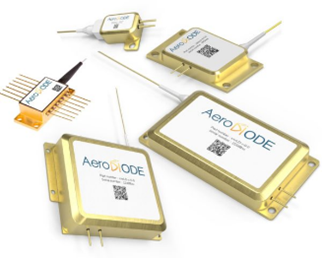

.png)
產品特色Features
Aerodiode 配有光連接器的光纖耦合 976 nm 雷射二極體通常應用於 CW 或脈衝雷射二極體驅動，可與高速納秒脈衝驅動或 CW 脈衝驅動兼容。所有模塊均具有窄帶寬，適用於 Yb3+或 Er3+泵浦（布拉格光柵技術）。
大多數 976nm 雷射二極體+驅動的解決方案被用來優化單發至 CW 脈衝性能，脈寬低至 1 納秒。 976nm 雷射二極體由內部的電路板脈衝發生器或外部 TTL 訊號提供精確脈衝，納秒脈衝模式下功率可達 1200mW。5 種多模版本利用 106 μm 多模光纖（NA: 0.22）CW 發射功率高達 140W。
每個雷射二極體均有獨立的光連接器: 單模版本的 FC/APC，多模版本的高功率 SMA 905。
Aerodiode 976 nm雷射二極體的產品特點：
- 所有版本為光纖耦合
- 5 種模式：1 個單模和 4 個高功率多模
- 單模型號高達 250 mW CW：多模 100 W
- 單模版本的光纖輸出峰值功率高達 600 mW
- 單模版本的脈寬低至 1 ns
- CW 模式下低噪音
產品規格Specifications
| 976 nm Laser diode + driver solutions : | |||||
|---|---|---|---|---|---|
| 976 nm Laser Diode version : | Laser Driver version : | ||||
| CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version) |
Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) |
User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs) |
Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version) |
||
| Output Power (CW regime (typ) | 1- Singlemode 500 mW | 500 mW | 500 mW | No | Not compatible |
| 2- Singlemode 1000 mW | 900 mW | 450 mW (std)/ 900 mW (UHP version) | No | Not compatible | |
| 3-6 : Multimode 10 W / 30 W / 60 W / 140 W or 180 W | Not compatible | Respectively 10 W / 30 W / 60 W / 140 W or 180 W | |||
| Output power - Pulse regime (typ) | 1 - Singlemode 500 mW | No | 1000 mW | 800 mW | Not compatible |
| 2- Singlemode 1000 mW | No | 1500 mW | 900 mW | ||
| 3-6 : Multimode 10 W / 30 W / 60 W / 140 W or 180 W | Not compatible | Respectively 10 W / 30 W / 60 W / 140 W or 180 W | |||
| User design nanosecond pulse shape (integrated AWG) | No (CW driver) | No (On-Off driver) | Yes | No | |
| Laser diode T° range | 15 - 50 °C | 15 - 40 °C | |||
| Pulse duration (Ext pulse trigger) | 0.5 ns - CW | 0.5 ns - 8 µs | 10 µs - CW | ||
| Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | No | |||
| Typ rise/fall time ; Min pulse duration | 3 (ns/A) ; 1.5 ns | < 1 (ns/A) ; 1 ns | few µsec | ||
| Internal rep rate adjustment | 1 Hz - 4 MHz (250 MHz option) | 1 Hz - 20 MHz | No | ||
| Temporal jitter | < 20 ps | < 2 ns | |||
| Adjustable CW current offset in pulse regime | (Optional) | No | Yes (extrenal mode) | ||
| Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python | ||||
| Power supply | 110/220 V power supply is included | This module requires an external 24 V power supply | |||
