專業1064nm 雷射二極體廠商
- 1064nm 雷射二極體

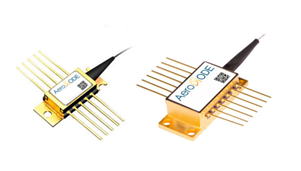

- Model: 1064nm laser diodes
- 品牌:Aerodiode
產品特色Features
Aerodiode 的光纖耦合 1064nm 雷射二極體通常應用於 CW 或脈衝雷射二極體驅動器，可與低噪音 W 或高速納秒脈衝驅動兼容。此雷射模塊內置 TEC 控制器，提供可開發或可總和版本，納秒脈衝模式下功率高達 2W。
大多數雷射二極體+驅動的解決方案被用來優化單發至 CW 脈衝性能，脈寬低至 1 納秒。該雷射二極體由內部的電路板脈衝發生器或外部 TTL 訊號提供精確脈衝。多模版本可提供，CW 發射下功率高達 10W。
Aerodiode 1064nm 雷射二極體的產品特點：
- 4 種模式：3 個單模 Bragg 或 DFB 的和 1 個多模
- 單模型高達 550 mW CW：多模 10 W
- 單模版本的光纖輸出峰值功率高達 1500mW
- 帶寬低至 200 kHz（DFB版本）
- 脈寬低至 1 ns
- CW 模式下低噪音
- 更多詳細技術請參照規格表
產品規格Specifications
| Laser diode + driver solutions technical performances : | ||||||
|---|---|---|---|---|---|---|
| Laser Diode version : | Laser Driver version : | |||||
| CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version) |
Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) |
Pulse & CW Driver -HP version - (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) |
User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs) |
Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version) |
||
| Output Power CW regime (typ) |
1-Fabry-Perot | 700 mW | 400 mW | No (only pulse) | Not compatible | |
| 2a-DFB (optimized for pulsing) | 200 mW | 200 mW | ||||
| 2b-DFB (optimized for CW emission) | 200 mW | 200 mW | ||||
| 3-Broad Bragg | 650 mW | 500 mW | 500 mW | |||
| 4-Multimode (9 W) | Not compatible | 9 W | ||||
| 5-Multimode (25 W) | Not compatible | 25 W | ||||
| 6-Multimode (100 W) | Not compatible | 100 W | ||||
| Output power Pulse regime (typ) |
1 - Fabry-Perot | No | 700 mW | 1500 mW | 700 mW | No |
| 2a-DFB (optimized for pulsing) | 500 mW min (700 mW typ) | |||||
| 2b-DFB (optimized for CW emission) | 500 mW min (700 mW typ) | |||||
| 3 - Broad FBG | 950 mW | 1500 mW | 1000 mW | |||
| 4- Multimode (9 W) | Not applicable | 10 W | ||||
| 5- Multimode (25 W) | Not applicable | 25 W | ||||
| 6- Multimode (100 W) | Not applicable | 100 W | ||||
| User design nanosecond pulse shape (integrated AWG) | Any | No (On-Off driver only) | Yes (embedded AWG) | Yes but only with external analog signal | ||
| Laser diode T° range | 15 - 50 °C | 15 - 40 °C | ||||
| Pulse duration (Ext pulse trigger) | CW only | 0.5 ns - CW | 0.5 ns - 5 µs | 10 µs - CW | ||
| Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | No | ||||
| Typ rise/Fall time ; Min pulse duration | 3 (ns/A) ; 1.5 ns | < 1 (ns/A) ; 1.5 ns | few µsec | |||
| Internal rep rate adjustment | 1 Hz - 4 MHz | 1 Hz - 10 MHz (250 MHz Optional) |
1 Hz - 20 MHz | No | ||
| Temporal jitter | < 25 ps | < 8 ps | < 2 ns | |||
| Adjustable CW current offset in pulse regime | No | Yes | No | Yes (extrenal mode) | ||
| Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python | |||||
