專業1550nm 雷射二極體廠商
- 1550nm 雷射二極體
- Model: 1550nm laser diode
- 品牌:Aerodiode
產品特色Features
Aerodiode 的光纖耦合 1550nm 雷射二極體通常應用於 CW 或脈衝雷射二極體驅動， 5 個 DFB 模式均採用功率高達 120 mW 單頻版本。
1550nm 雷射二極體可與高速納秒脈衝驅動兼容，解決方案適用於 LIDAR 飛行時間測量或 3D 傳感研發領域。
單模版本的 1550nm 雷射二極體納秒脈衝模式下功率高達 500mW。大多數雷射二極體 + 驅動的解決方案被用來優化單發至 CW 脈衝性能，脈衝寬度低至 1 納秒。1550nm 雷射二極體由內部的電路板脈衝發生器或外部 TTL 訊號提供精確脈衝，產生突發形狀變得容易。
Aerodiode 單頻 1550nm 雷射二極體的產品特點：
- 波長：1550nm 或選擇 1260nm 至 1650nm 所需的波長
- 每個波長 6 個模式可選：5 款單頻DFB雷射二極體（2 個擁有超窄線寬），1 款 Bragg grating 版本（CW 功率＞400mW）
- 所有版本均採用光纖耦合、DFB 版本均帶有隔離器
- CW 模式下功率高達 400 mW（適用於 1500nm 波長）
- 峰值功率高達 600 mW
- 脈衝寬度低至 1 ns
- CW 模式下低噪音

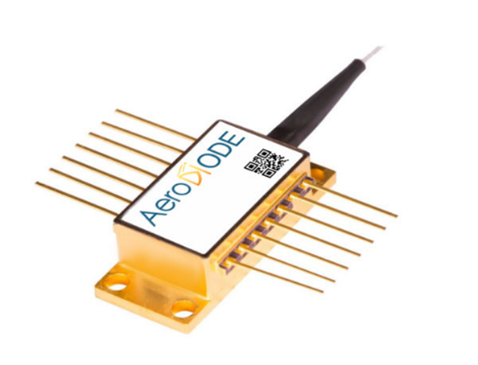

- 蝶形封裝 Type1 規格，其他規格可選
- 二極體 + 雷射解決方案更多詳細技術參照規格表
產品規格Specifications
| 1550 nm Laser diode + driver solutions : | |||||
|---|---|---|---|---|---|
| 1550 nm Laser Diode version : | Laser Driver version : | ||||
| CW Driver (for singlemode diodes : CCS-CW is the open driver and CCSI-CW is the integrated version) |
Pulse & CW Driver (from 1 ns to CW : CCS is the open driver and CCSI is the integrated version) |
User design pulse shape Driver (SHAPER open driver from 0.5 ns to 8 µs) |
Multimode diode Driver (High power driver for 10 to 150 W diodes : CCM is the open version, CCMI is the integrated version) |
||
| Output Power (CW regime (typ) | 1- Singlemode 10 mW | 10 mW | No | ||
| 2- Singlemode 40 mW | 40 mW | No | |||
| 3 - singlemode 100 mW | 100 mW | No | |||
| 3b- Singlemode 150 mW | 150 mW | No | |||
| 4- singlemode 400 mW | 400 mW | No | |||
| 5 & 6 : singlemode 20/40 mW ultra-narrow linewidth | 20/40 mW | NO | |||
| 7 & 8 : Multimode 15/30 W | No | 15/30 W | |||
| Output power - Pulse regime (typ) | 1 - Singlemode 10 mW | No | 15 mW | ||
| 2- Singlemode 40 mW | No | 60 mW | |||
| 3 - singlemode 100 mW | No | 150 mW | |||
| 4- singlemode 400 mW | No | 600 mW | 400 mW | ||
| 5 & 6 : singlemode 20 mW/40 mW ultra-narrow linewidth | No | 30/55 mW | |||
| 7 & 8 : Multimode 15 W/30 W | No | 15/30 W | |||
| User design nanosecond pulse shape (integrated AWG) | No (CW driver) | No (On-Off driver) | Yes | No | |
| Laser diode T° range | 15 - 50 °C | 15 - 40 °C | |||
| Pulse duration (Ext pulse trigger) | 0.5 ns - CW | 0.5 ns - 8 µs | 10 µs - CW | ||
| Pulse duration (Internal pulse generator) | 0.5 ns - 500 ns | No | |||
| Typ rise/fall time ; Min pulse duration | 3 (ns/A) ; 1.5 ns | < 1 (ns/A) ; 1 ns | few µsec | ||
| Internal rep rate adjustment | 1 Hz - 4 MHz (250 MHz option) | 1 Hz - 20 MHz | No | ||
| Temporal jitter | < 20 ps | < 2 ns ( | |||
| Adjustable CW current offset in pulse regime | (Optional) | No | Yes (external mode) | ||
| Interface/GUI/libraries | USB - Windows 7/10 - DLLs - Hexa/Linux - Labview - Python | ||||
