產品特色Features

Aerodiode的脈衝雷射二極體驅動器可產生1 ns到CW的生成脈衝或CW光訊號。GUI軟體使用者可以全面控制所有模塊功能，包含幾個庫。

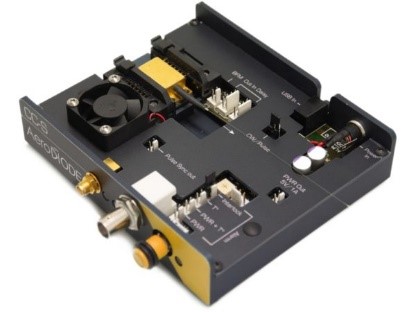

脈衝雷射二極體驅動器，是由內部的電路板來脈衝發生器生成精確脈衝，或外部TTL訊號按需求生成。廣泛應用於大多數雷射二極體外型規格兼容，蝴蝶行雷射二極體很容易在CW或脈衝模式下以任一頻率或脈衝循環內驅動，重覆頻率高達250MHz。

Aerodiode脈衝雷射二極體驅動器的產品特點:

了解更多產品詳情，點擊即可參閱：脈衝雷射二極體驅動器

點擊即可參閱教程

光纖耦合雷射二極體

產品規格Specifications

	CCS-std	CCS-HP (High Power)	CCS-UHP (Ultra High Power)	CCS-HPP (High Pulse Performance)	Shaper (User-design pulse shape - see special product page)
Output current - Pulse regime	1.5 A	3.5 A	9A	4A	1.6 A
Output current - CW regime	0.8 A		1.5 A	2 A	no
Output voltage range	up to 4.8 V		up to 5/10 V	1 - 24 V (adjustbale)	up to 24 V
Laser diode T° range	15-50 °C
Pulse duration (Ext pulse trigger)	0.5 ns - CW			0.5 ns - 8 µs
Pulse duration (Internal pulse generator)	0.5 ns - 500 ns			0.5 ns - 8 µs
Typ rise/fall time (TO/Butterfly/VCSEL) (1)	1 / 3 / 0.5 (ns/A)			0.5 /
Typ min pulse duration (Butterfly)	1.5 ns		5 ns	1 ns
Internal rep rate adjustment	1 Hz - 4 MHz	1 Hz - 10 MHz		1 Hz - 250 MHz	1 Hz - 20 MHz
Temporal Jitter (rms)	< 25 ps			< 8 ps	< 1.5 ns
Adj. CW offset in pulse regime	No	Yes			No
User design pulse shape	No				Yes
Interface/GUI/libraries	USB - Windows 7/10 - DLLs - Hexa - Labview - Python
Dimensions (mm)	13011928			17010727.5	1679227
Power supply	12 V (110 - 220 V adapter included)			24 V (110 - 220 V adapter included)
