ZQ1 系列專為高負載工業環境設計，具備耐震、抗衝擊的堅固外殼，可有效保護內部光電元件，抵禦高溫、低溫、粉塵與濕氣等環境影響。結合內建熱電致冷器（Peltier cooling）與智慧監控功能，ZQ1 模組可確保穩定輸出、可靠運作與長期使用壽命。
專業ZQ1 - 405~830nm 廠商
- 首頁 >
- 產品專區 >
- 雷射 Laser >
- 定位雷射 >
- 雷射影像處理/OEM雷射 >
- ZQ1 - 405~830nm
- ZQ1 - 405~830nm

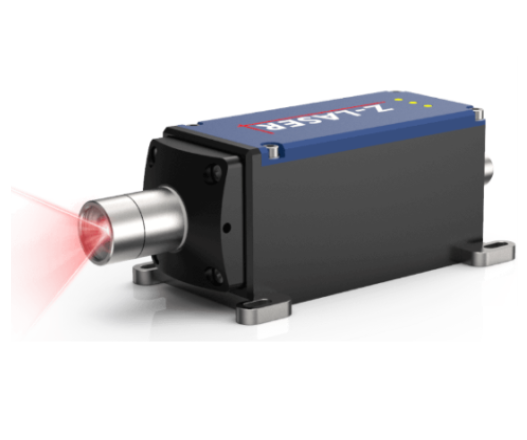

- Model: ZQ1 Laser Family
- 品牌:Z-Laser
產品特色Features
The ZQ1 Series is built for demanding industrial environments. Its rugged, vibration- and shock-resistant housing protects optoelectronic components from harsh conditions such as heat, cold, dust, and moisture. With integrated Peltier cooling and intelligent monitoring, ZQ1 modules deliver stable performance, reliable operation, and long service life.
  |
|||
|
Machine Vision |
Road and rail inspection |
Analytic |
3D-Measurement |
產品規格Specifications
ZQ1 Module
Weight
690g
Size
159 x 65, 2 x 51, 5mm
Wavelength
405nm, 450nm, 520nm, 640nm, 660nm, 760nm, 808nm, 830nm
Output Power
2500mW
Beam Angle
5°, 10°, 20°, 30°, 45°, 60°, 75°, 90°
Projection
Line, Point
Focus
Manually focusable
Supply Voltage
12 - 24VDC
IP Protection Class
IP 67
Application Area
Image Processing, OEM
ZQ1 – HighPower
Weight
691g
Size
159 x 65, 2 x 51, 5mm
Wavelength
450nm, 760nm, 808nm
Output Power
1600mW, 2500mW
Beam Angle
55°, 70°, 80°
Projection
Gray Line, Line
Supply Voltage
27VDC
IP Protection Class
IP 67
Application Area
Image Processing, OEM
ZQ1-MagicLine
Weight
740g
Size
205 x 65, 2 x 53, 3mm
Wavelength
520nm
Output Power
600mW
Beam Angle
70°
Projection
Line
Focus
Manually focusable
Supply Voltage
12 - 24VDC
IP Protection Class
IP 67
Application Area
Positioning
