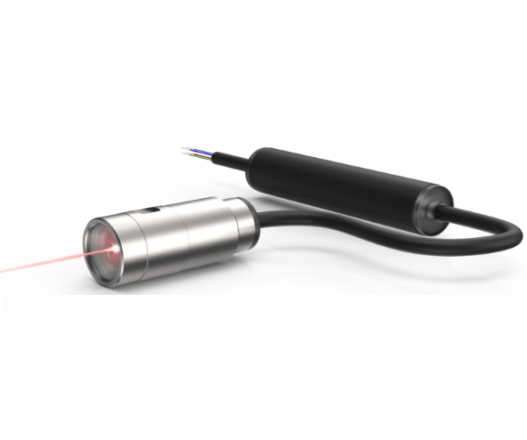

ZXS20 - 405~830nm
Model: ZX Laser Family
品牌:Z-Laser

產品特色Features

The ZXS is a high-precision laser module for industrial image processing and sensing applications. Robot-aligned optics deliver excellent beam quality with a boresight error below 0.8 mrad. Available in red, green, blue, or infrared wavelengths, it features tool-free focusing and flexible electronics options for easy integration. With a rugged industrial design and stable output, the ZXS is well suited for machine vision systems and heavy-duty equipment.

ZXS 為高精度雷射模組，適用於工業影像處理與感測應用。其光學元件經機器人自動校準，指向誤差低於 0.8 mrad，具備優異光束品質。提供紅光、綠光、藍光及紅外線波長選擇，並具備免工具對焦與彈性電子模組配置，便於系統整合。憑藉堅固的工業級設計與穩定輸出表現，ZXS 適合應用於機器視覺系統及重負載工業設備。

Datasheet - ZXS-OEM Datasheet - ZXS

• Repeatable product performance due to automated production processes
• Optical output power up to 200 mW	• Analog intensity control	• Industrial standard
• TTL modulation up to 150 kHz	• Wavelengths from 405 - 830 nm
• Highest reproducibility of beam quality	• Manually focusable (ZXS20)

Machine Vision

Triangulation Sensors

High-Precision

Positioning Tasks

3D-Measurement

ZXS / ZXS-OEM Wavelengths

產品規格Specifications

ZXS20

Weight

180g, 220g

Size

85 x 20mm

Wavelength

405nm, 450nm, 520nm, 635 - 685nm, 785nm, 830nm

Output Power

30mW, 40mW, 45mW, 60mW, 80mW, 90mW, 100mW, 120mW 150Mw, 160mW, 200mW,

Beam Angle

20°, 30°, 45°, 60°

Projection

Grid, Cross, Line, Point

Focus

Fixed Focus

Supply Voltage

9 - 30VDC

IP Protection Class

IP 67

Application Area

Image Processing, OEM
