Z Fiber Module（ZFSM）為高性能主動式散熱雷射模組，專為高要求量測應用設計，其光束品質優於傳統自由光束（free-beam）方案。提供藍光、綠光及紅光波長選擇，可依應用需求配置。內建智慧監控功能與 RS-232、I²C 通訊介面，可穩定運作並無縫整合至機器視覺、醫療設備及分析儀器系統中。
專業Z-Fiber - 450/520/640/660nm廠商
- 首頁 >
- 產品專區 >
- 雷射 Laser >
- 定位雷射 >
- 雷射影像處理/OEM雷射 >
- Z-Fiber - 450/520/640/660nm
- Z-Fiber - 450/520/640/660nm
- Model: Laser modules
- 品牌:Z-Laser
產品特色Features

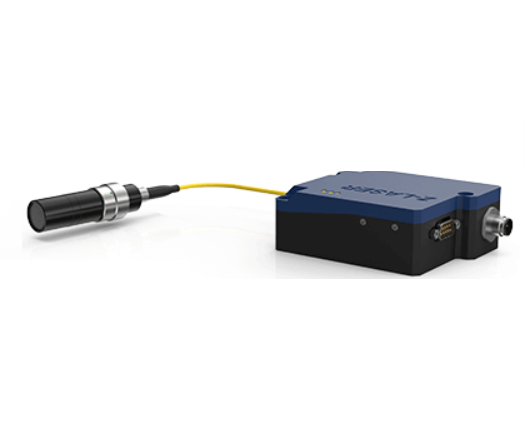

The Z Fiber Module (ZFSM) is a high-performance, actively cooled laser designed for demanding measurement applications. It delivers superior beam quality compared to conventional free-beam solutions. Available in blue, green, or red wavelengths, it offers application-specific flexibility. Integrated monitoring functions and interfaces such as RS-232 and I²C ensure stable operation and seamless integration into machine vision, medical, and analytical systems.
  |
|||
|
Machine Vision |
Triangulation |
Analytics |
3D-Measurement |
|
Wavelengths
|
|||
產品規格Specifications
Z-Fiber
Weight
470g
Size
Fiber length: 450mm, Gehäuse: 105, 25 x 82, 5 x 36, 6mm, Circuit board: 70 x 60mm
Wavelength
450nm, 520nm, 640nm, 660nm
Output Power
35mW
Beam Angle
10°, 20°, 30°, 45°, 60°, 75°
Projection
Line, Point
Focus
Manually focusable
Supply Voltage
5 - 30VDC
IP Protection Class
IP 50, IP 67
Application Area
Image Processing, OEM
