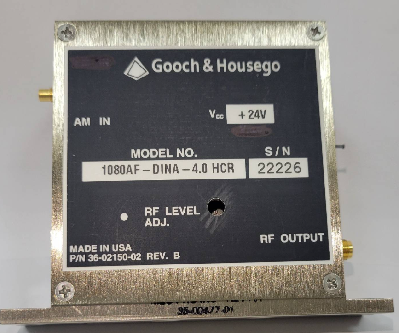

- AO RF Driver 1080AF-DINA-4.0
- AO RF Driver 1080AF-DINA-4.0
- Model: 1080AF-DINA-4.0 (97-02910-13)
- 品牌:Gooch & Housego
維佳科技推出雷射及週邊零組件商品限時優惠,
全新體驗此產品享有7日試用高品質光學零件。
活動數量有限價格划算、可開立發票、此產品無保固。
詳情也歡迎您來電詢問04-22603233 或Email給我們: [email protected]
An RF driver generates the fixed or variable frequency signal supplied to the an acousto-optic device to induce the acousto-optic effect.
Our driver family series “2910” provides RF power up to 4 Watts. The “2910” series main features are easy to use, stable and offering high contrast. Models are available for either TTL- or AM (0-1V) control.
Features
- RF Power up to 4 W
- fixed frequency at 80 MHz
- controlled by TTL
Applikationen
- RF-signal source in order to control Modulators, Frequency Shifters, Pulse picker
.png)
|
SPECIFICATION |
|
|
Part Number |
97-02910-13 |
|
Input Impedance |
75 Ohms |
|
Digital Input |
Standard TTL |
|
Frequenzy |
80 MHz |
|
RD Power |
4W |
|
Type of control |
TTL |
|
TTL Impedance |
75 Ohm |
|
Contrast Ratio |
50 dB |
|
typ.Risetime |
12 ns |
|
External Clock |
no |
|
Power Supply |
24 V |
|
RF connector |
SMA |
|
RF Output |
|
|
Center Frequency(Fc) |
80 MHz ±0.1% |
|
Output Power(SMA Female) |
4W |
|
Rise/Fall Time |
12 nsec Typ. |
|
RF Contrast Ratio |
50 dB min |
|
Harmonic Distortion |
-20 dBc |
|
Output VSWR |
1.5 : 1 Max |
|
Power Supply Voltage |
+24 V @ 900mA |

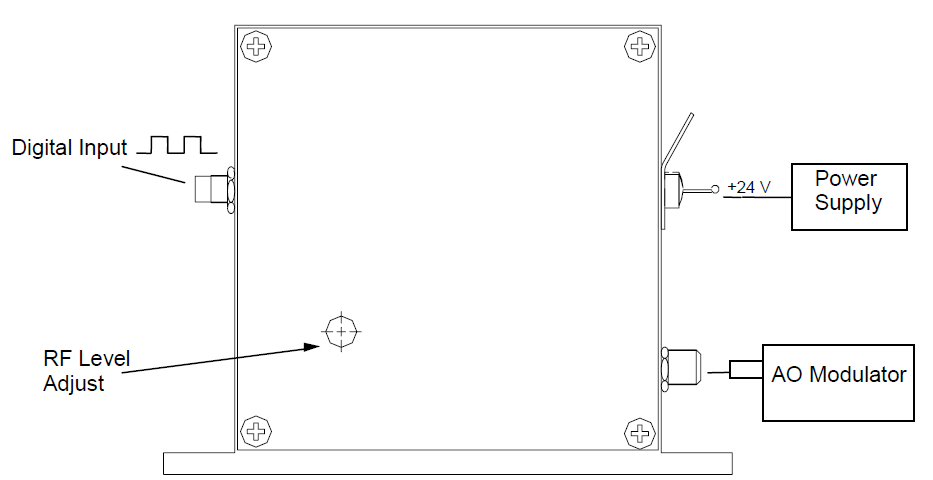

Drawing of 1080AF-DINA-4.0 HCRA
