LED光源/ LED Light Source

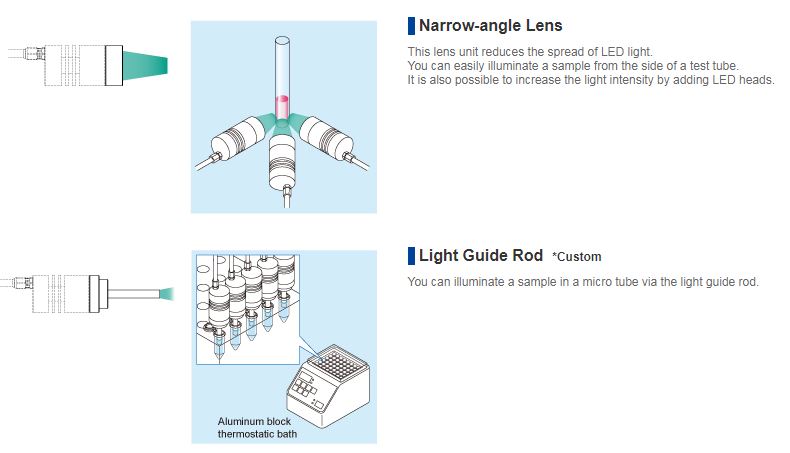

LED 光源LED/ Light Source Usage Example
LED 光源/ LED Light Source Specification:
Model CL-1501
Light control method Digital control 0-100 %
Output control method Constant current control
Number of outputs 1 channel
Maximum output current 350mA, 500mA, 700mA, 900mA
*Auto-judge according to a connected LED head
External ON/OFF External ON/OFF control function*
Simultaneous control Daisy chain up to 8 units*
Supply voltage Power supply AC adapter
AC100-240V, 50/60Hz
Connector for LED heads D-sub 9 pin
Connector for daisy chain R03-R3F (Trigger OUT), R03-R3M (Trigger IN)
Recommended environment Temperature 5 - 35 deg C
Humidity 20 - 75% *Avoid condensation
For indoor use only
Cooling method Natural cooling
Dimensions 141(W) x 98(D) x 53(H)mm
Weight 425g
*A dedicated external device is required.
Download Brochure of LED Light Source(LED 光源) CL-1501
Click the page below :
