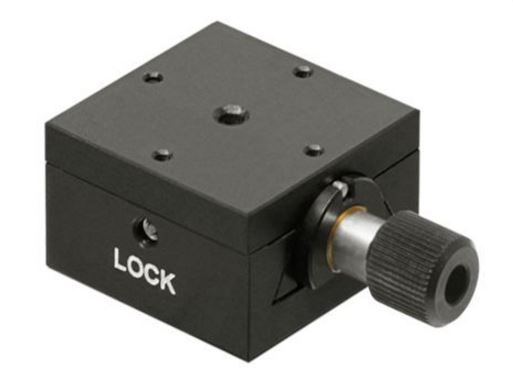

7T25-10 - Dovetail Linear Translation Stage
Model: 7T25-10
品牌: Standa

產品特色Features

		Compact design
		Robust Dovetail Mechanism
		Lockable Moving Platform
		Rapid, Smooth Positioning
		XY Miniature Dovetail Stages

The Dovetail Translation Stage is miniature, ideal for use in applications where space is limited. The design uses a precision M4x0.25mm pitch lead screw for smooth linear positioning along the entire range of travel. The Moving platform is lockable. Various application accessories are also available.

產品規格Specifications

Specifications

Travel range		10 mm



Fine Screw pitch		0,25 mm



Sensitivity		1 µm



Drive location		Center drive



Bearings		Dovetail



Load capacity		1,5 kg



Material		Aluminum



Weight



	7T25-10	0,03 kg



	7T25-10 XY	0,08 kg

		Printable version

		View drawings

		Download 3D
