產品特色Features

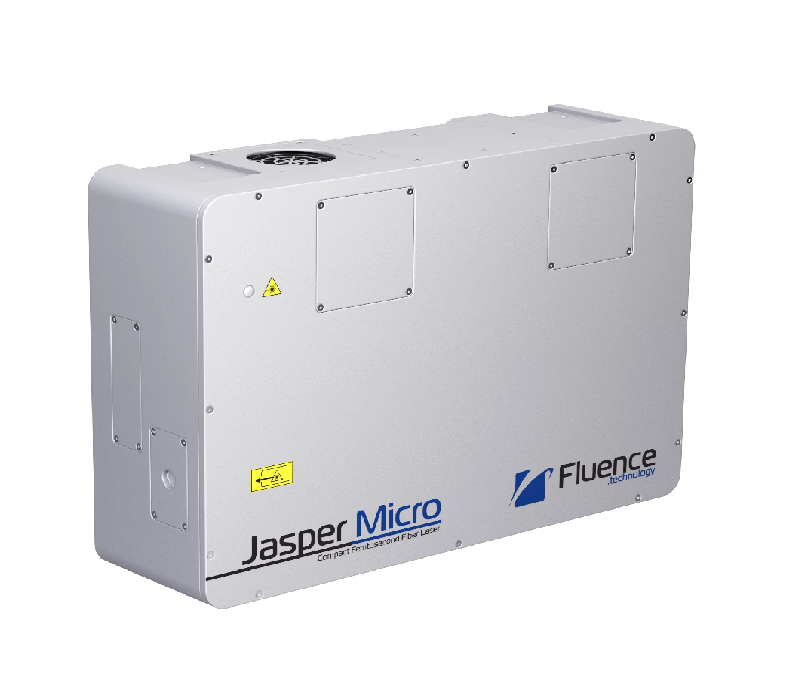

Jasper Micro 是一款小型化高效能飛秒雷射系統，內建脈衝選擇器 (pulse picker)、可調式突發模式 (CEB)，以及可調式脈衝寬度，範圍從小於 250 飛秒 (fs) 至 8 皮秒 (ps)，脈衝重複頻率最高可達 20 MHz，提供高度製程彈性。

其全光纖、無 SESAM 設計確保長期穩定與免維護運作，同時具備高穩定性與光束品質。被動式散熱與多方向安裝特性，特別適合於 OEM 設備整合應用。

Features:

Applications:

產品規格Specifications

Model	JM7 – 5
Central Wavelength	1030 +/-5 nm
Average Power	> 7 W
Max. Pulse Energy	> 5.0 µJ @ 1.4 MHz
Pulse Width	< 250 fs @ 5.0 µJ
Tuning Range	< 250 fs – 8 ps
Peak Power	> 20 MW
Pulse Repetition Rate (PRR)	Single-shot to 20 MHz
Pulse Picker	< 2 MHz
Burst Mode	Optional
Beam Quality, M2	< 1.2 (1.1 typical)
Beam Circularity	> 87%
Beam Divergence	< 1 mrad
Beam Diameter	2.5 ± 0.5 mm
Polarization	vertical, PER > 28 dB
Beam Pointing Stability, 24h	< 25 µrad
Long Term Power Stability, 72h	< 0.5%
Pulse-to-Pulse Energy Stability	< 1%
Triggering	External / Internal
Pulse Control	Internal / External analog modulation, Pulse picker, Pulse-on-demand
Options	Custom Envelope Burst (CEB), Harmonic Module 515 nm, 343 nm, Automated Mechanical Shutter
Warm-up time	< 30 min from cold start
Cooling	Air, Passive (fanless laser head)
Chiller	Not required
Laser Control Software	Included
Control interface	GUI (USB) / SCPI (RS232) / TTL (BNC) / Analog (BNC)
Umbilical length	2.5 m (other upon request)
Laser head dimensions (L x W x H)	400 x 230 x 116 mm
Laser head weight	18 kg
Power supply unit dimensions (L x W x H)	4U 19” rack unit; 495 x 449 x 177 mm
Power supply unit weight	12 kg
Installation options	Horizontal / Vertical / Sideway
Operating ambient temperature	15 – 30°C
Relative humidity	10 – 80% (non-condensing)
Power consumption	< 300 W
Electrical	100 – 240 V AC, Single Phase 50 – 60 Hz

由於產品不斷改進，所有規格會有所更改，詳情請與我們聯繫。
