- 11M-LINK - PC Based Power Monitor
- Model: 11M-LINK
- 品牌:Standa
.jpg)

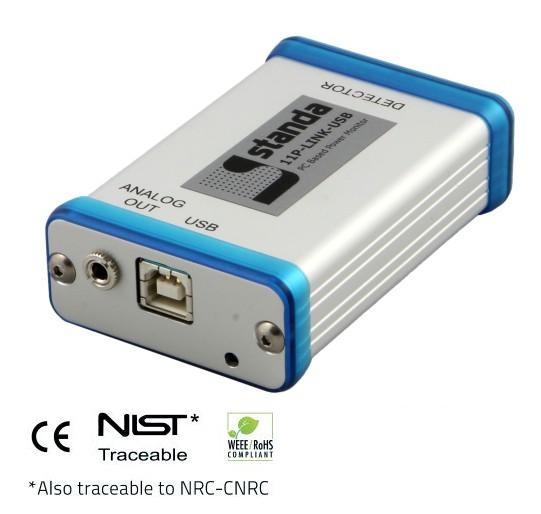

11M-LINK - PC Based Power Monitor 電腦控制型雷射功率監測介面
11P-LINK 為一款高整合度電腦介面模組，專為希望透過電腦進行雷射功率量測與資料分析的使用者設計。此模組具備強大的統計運算與顯示功能，是科研應用與 OEM 系統整合中，兼具高效能與高性價比的理想選擇。11P-LINK 體積精巧、功能先進，非常適合嵌入機台系統使用。可透過 11PC-LINK 專用軟體或電腦端序列指令操作，同時支援多台裝置並聯控制，可在單一電腦上同步監測多組功率感測頭。裝置啟動後可自動辨識感測頭，僅顯示該感測頭可用的選單功能，並可根據智慧型接頭內建校正資料自動進行自我校正，確保量測精度。可搭配 11UP、11XLP12 系列雷射功率感測器及 11PH 光電感測器使用。
主要特色
• 單通道設計，支援 USB 與 RS-232 通訊
• 完全支援 Microsoft Windows 平台
• 符合人體工學設計，操作簡便
• 內建完整統計分析功能（最大值、最小值、平均值、標準差、穩定度等）
• 具備資料擷取與記錄功能，方便後續分析
• 支援電腦序列控制指令，便於系統整合
• 支援功率與光電偵測模式
• 內建能量模式
11P-LINK compact interface box is the choice for users who want to do all power meters control as well as the analysis from their computer. With its impressive features for statistics calculation and display options, the 11P-LINK is also an answer to scientific or OEM users who need a low-cost computer based power monitor. Because of very compact size and advanced features the 11P-LINK is the perfect choice for integration in machines. You can control it with our 11PC-LINK software or with PC serial commands. You can even connect many 11P-LINK units to a single computer, which makes it a device of choice for the simultaneous monitoring of many power detectors. The 11P-LINK will recognize the power meter as soon as it is plugged in. Only menus that function for that head will appear. Moreover, the 11P-LINK will auto-calibrate using the data stored in the intelligent connector to ensure the most accurate measurement possible.
Compatible with all 11UP, 11XLP12 laser power detectors and 11PH photo detectors.
Main Features
• Single Channel, USB or RS-232
• PC-Based Microsoft Windows
• Ergonomically designed
• Full Statistical Functions
• Easy Data Acquisition Capabilities
• PC Serial Commands
• Power/Photo Detectors
• Energy Mode
| Monitor | 11P-LINK | 11P-LINK-4 |
| Detector Types | Thermopiles, Photo Detectors | Thermopiles, Photo Detectors |
| Channels / Display | 1-Channel / PC-Based | 4-Channel / PC-Based |
| POWER METER SPECIFICATIONS | ||
| Power Range | ||
| Thermopile | 3 µW to 30 kW | 3 µW to 30 kW |
| Photo Detector | 1 pW to 3 W | 1 pW to 3 W |
| Monitor Accuracy | ±0.5 % full scale | ±0.5 % full scale |
| Statistics | a Current Value, Max, Min, Average, Std Dev., RMS & PTP Stability, Time | b Current Value, Max, Min, Average, Std Dev.,RMS & PTP Stability, Time |
| DETECTOR COMPATIBILITY | ||
| Thermopile | Average Power & Single Shot Energy | Average Power |
| Photo Detector | Average Power (mW, dBm) | Average Power (mW) |
| GENERAL SPECIFICATIONS | ||
| Number of Channels | 1 | 4 |
| Digital Display | Computer Screen | Computer Screen |
| Data Display | a Real Time, Histogram, Statistics, Digital Tuning Needle | b Real Time, Graphic, Statistics, High/Low Alarm, Post-Analysis Mode, Multi-Channel |
| Analog Output | 0 - 2 Volt, Adjustable, Full Scale, ±1 % | N/A |
| Serial Commands and Data Transfer | Via USB (standard) or RS-232 (option) | USB (standard) or Ethernet (option) |
| Real Time Data Transfer Rate | 10 Hz | 10 Hz |
| Dimensions | 57W x 26H x 91D mm | 286W x 233H x 43D mm |
| Weight | 0.12 kg | 2.5 kg |
| External Power Supply (RS-232 and Ethernet versions only) |
100/240 VAC 50-60 Hz to 12 VDC 200 mA | 100/240 VAC 50-60 Hz to 9-12 VDC 100 mA |
Specifications are subject to change without notice
a Using PC-LINK software.
b Using Octolink software.
