專業11S-LINK - Dual & Single Channel, PC-Based Power and Energy Monitor廠商
- 11S-LINK - Dual & Single Channel, PC-Based Power and Energy Monitor
- Model: 11S-LINK
- 品牌:Standa
.jpg)
產品特色Features

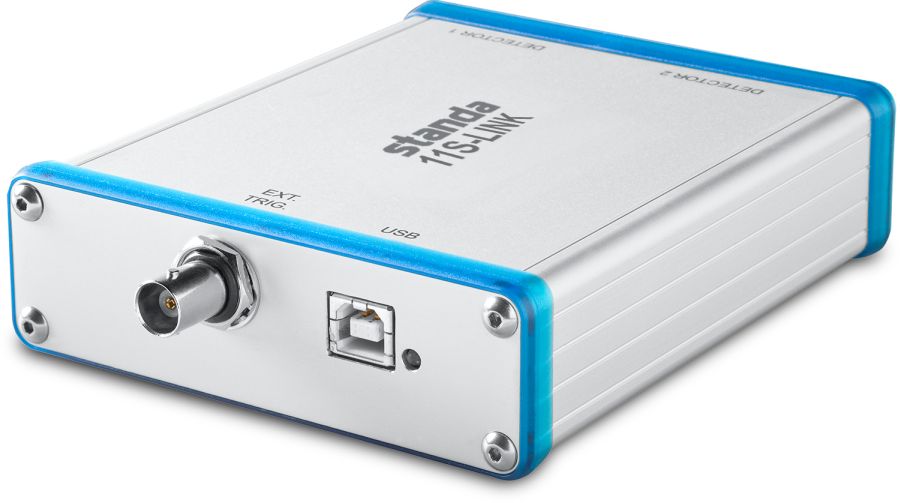

11S-LINK - Dual & Single Channel, PC-Based Power and Energy Monitor
單／雙通道電腦控制型雷射功率與能量監測儀
主要特色
- 可同時量測功率與能量
- 支援熱電堆感測器與焦電式感測器
- 提供單／雙通道版本（11S-LINK-1、11S-LINK-2）
- 電腦操作介面，內附專用軟體
- 支援序列指令控制，便於自動化整合
- 高速資料傳輸率：10 kHz / 通道
- 通訊介面選擇：USB 版本免外接電源
- 外部觸發輸入：2.4V～24V 標準規格
- 完全相容於 11UP、11XLP12、11PH 系列偵測器
* 支援 11UP、11XLP12 系列雷射功率感測器及 11PH 光電感測器。
Main Features
- Reads both power and energy
Thermopiles and pyroelectrics
- Available with 1 or 2 channels
11S-LINK-1 and S-LINK-2 models - PC-based
Connects to your PC with included software - Serial commands
Serial commands are available on all versions to let you take full control - Fastest data transfer rate
Get all the points transferred directly into your PC at 10 kHz/Channel - USB or Ethernet
Choose your favourite communications port. The USB version is port-powered - External trigger
Every model comes standard with a 2.4 V to 24 V external trigger
* Compatible with all 11UP, 11XLP12 laser power detectors and 11PH photo detectors.
產品規格Specifications
| Monitor | 11S-LINK-1 | 11S-LINK-2 |
| Detector Types | Thermopiles, Pyroelectrics | |
| Channels / Display | 1-Channel / PC-Based | 2-Channels / PC-Based |
| POWER METER SPECIFICATIONS | ||
| Power Range | 1 µW to 10 kW | |
| Monitor Accuracy | ±0.75 % for 25 % to full scale | |
| Statistics | Current Value, Max, Min, Average, Std Dev., RMS & PTP Stability, Time | |
| ENERGY METER SPECIFICATIONS | ||
| Energy Range | 30 fJ to 20 kJ | |
| Resolution (Digital) | Normal Mode: Current scale/4096 | |
| Monitor Accuracy | ||
| 1 % | ||
| 500 to 1 200 Hz (MB) | 2 % | |
| 1 200 to 6 000 Hz (MT) | 3 % | |
| 6 000 to 10 000 Hz (MT) | 6 % | |
| Real Time Data Transfer | 10 kHz in normal mode, no missing point | 10 kHz/Channel in normal mode, no missing point |
| Statistics | Current Value, Max, Min, Average, Std Dev., RMS & PTP Stability, Pulse #, Repetition Rate, Average Power | |
| DETECTOR COMPATIBILITY | ||
| Thermopile | Average Power & Single Shot Energy | |
| Pyroelectric | Pulse Energy | |
| GENERAL SPECIFICATIONS | ||
| Number of Channels | 1 | 2 |
| Digital Display | Computer Screen | |
| Data Display | Real Time, Ratio, Line Plot, Histogram, Statistics and 3D Histogram | |
| Serial Commands and Data Transfer Via | USB (standard) or Ethernet (option) a | |
| Real Time Data Transfer Rate | 10 kHz/Channel in normal mode, no missing point (for pyroelectrics only) b | |
| Rising Edge External Trigger | 3-24 V @ 13 mA, optically isolated | |
| Dimensions | 106W x 34H x 147D mm | |
| Weight | 0.424 kg | |
| Ext. Power Supply (Ethernet version only) | 100/240 VAC 50-60 Hz to 9 VDC 1.66 A | |
Specifications are subject to change without notice
a The Ethernet version also includes the USB output.
b Actual rate may depend on the computer.
