Model: 11QE65
品牌:Standa

產品特色Features

11QE65 - Laser Energy Detectors 雷射能量感測器

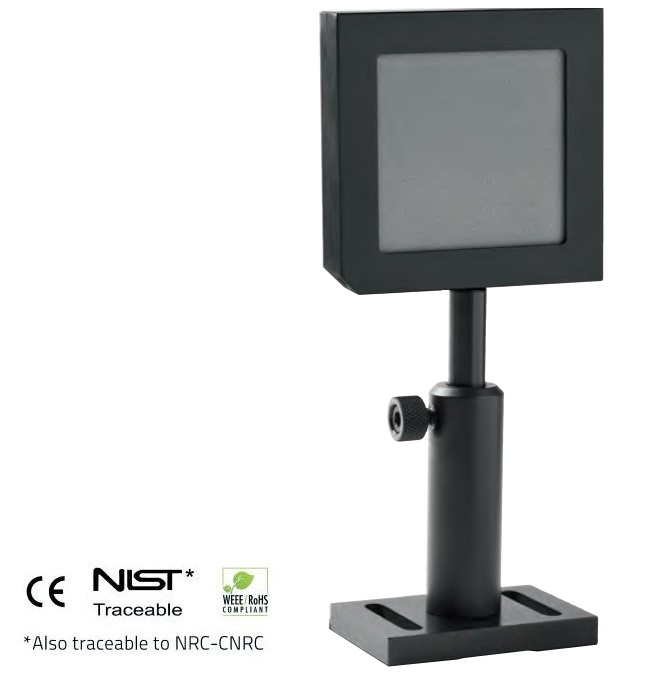

11QE65 雷射能量感測器可量測高達 200 焦耳的雷射能量（搭配衰減器使用時）。具備極低雜訊水準，僅 10 微焦耳，並擁有 65 mm × 65 mm 的大型有效感測孔徑。此感測器操作方便，可量測相對寬光斑的雷射光束，適用於各類 OEM 系統整合、製造測試及實驗室應用。

主要特色
• 模組化設計
可搭配兩種不同冷卻模組，提升感測器的功率承受能力。

• 低雜訊表現
採用 MT 吸收鍍層，雜訊僅 10 µJ。

• 可選配 QED 衰減器
最高可量測 5 倍能量範圍，可選配經校正版本，支援 532 nm 至 1064 nm 全波段或單一波長設定。

• 大型感測孔徑
有效孔徑達 65 x 65 mm ，適合量測大光斑雷射。

• 內附測試靶
適用於 MB 型號。

• 智慧介面
內建所有校正資料，確保精確量測。

相容主機：

11MAESTRO

11M-LINK

11S-LINK

11QE65 laser energy detectors can measure energy up to 200 J (with attenuator). Low noise level - just 10 µJ. Large effective aperture - 65 mm square. These detectors are convenient to use and can measure relatively wide beams. They are suitable for many OEM, manufacturing and laboratory applications.

Main Features

• Modular Concept
Increase the power capability of your detector with 2 different cooling modules

• Low Noise Level
10 µJ for the MT coating

• QED Attenuator Available
Measure up to 5X higher energies. Available with optional calibration, all wavelengths between 532 & 1064 nm,
or single wavelength

• Large Aperture
Effective aperture of 65 x 65 mm

• Test Target Included
With the MB models

• Smart Interface
Containing all the calibration data

Compatible Monitors

11MAESTRO

11M-LINK

11S-LINK

產品規格Specifications

Detector	11QE65LP-S-MB		11QE65LP-H-MB		11QE65ELP-S-MB		11QE65ELP-H-MB
MAX MEASURABLE ENERGY (WITH ATTENUATOR)	200 J		200 J		200 J		200 J
MAX REPETITION FREQUENCY	100 Hz		100 Hz		20 Hz		20 Hz
EFFECTIVE APERTURE	65 x 65 mm		65 x 65 mm		65 x 65 mm		65 x 65 mm
MEASUREMENT CAPABILITY
Spectral Range ^*a	0.19 – 20 µm		0.19 – 20 µm		0.19 – 20 µm		0.19 – 20 µm
Maximum Measurable Energy ^b,c	Alone	Attenuator	Alone	Attenuator	Alone	Attenuator	Alone	Attenuator
1064 nm, 150 ns pulse, single shot ^d	50 J	200 J	50 J	200 J	50 J	200 J	50 J	200 J
1064 nm, 7 ns, 10 Hz	25 J	125 J	25 J	125 J	25 J	125 J	25 J	125 J
266 nm, 7 ns, 10 Hz	20 J	35 J	20 J	35 J	20 J	35 J	20 J	35 J
Noise Equivalent Energy ^e	10 µJ		10 µJ		20 µJ		20 µJ
Sensitivity ^f,g	4 V/J		4 V/J		1.5 V/J		1.5 V/J
Max Repetition Frequency	100 Hz		100 Hz		20 Hz		20 Hz
Maximum Pulse Width (typical)	0.7 ms		0.7 ms		5 ms		5 ms
Rise Time (typical 0-100 %)	1 ms		1 ms		6 ms		6 ms
Calibration Uncertainty ^h	±3 %		±3 %		±3 %		±3 %
Repeatability
DAMAGE THRESHOLDS
Maximum Average Power	Alone	Attenuator	Alone	Attenuator	Alone	Attenuator	Alone	Attenuator
All Wavelengths	12 W	30 W	40 W	90 W	12 W	30 W	40 W	90 W
Maximum Energy Density	Alone	Attenuator	Alone	Attenuator	Alone	Attenuator	Alone	Attenuator
1064 nm, 150 µs, 10 Hz	1.2 J/cm²	14 J/cm²	1.2 J/cm²	14 J/cm²	1.2 J/cm²	14 J/cm²	1.2 J/cm²	14 J/cm²
1064 nm, 7 ns, single shot	0.6 J/cm²	16 J/cm²	0.6 J/cm²	16 J/cm²	0.6 J/cm²	16 J/cm²	0.6 J/cm²	16 J/cm²
1064 nm, 7 ns, 10 Hz	0.6 J/cm²	8 J/cm²	0.6 J/cm²	8 J/cm²	0.6 J/cm²	8 J/cm²	0.6 J/cm²	8 J/cm²
532 nm, 7 ns, 10 Hz	0.6 J/cm²	6 J/cm²	0.6 J/cm²	6 J/cm²	0.6 J/cm²	6 J/cm²	0.6 J/cm²	6 J/cm²
266 nm, 7 ns, 10 Hz	0.5 J/cm²	1 J/cm²	0.5 J/cm²	1 J/cm²	0.5 J/cm²	1 J/cm²	0.5 J/cm²	1 J/cm²
Maximum Average Power Density	10 W/cm²	600 W/cm²	10 W/cm² ⁱ	600 W/cm²	10 W/cm²	600 W/cm²	10 W/cm² ⁱ	600 W/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture (with Attenuator)	65 X 65 mm (62 X 62 mm)
Absorber	Multi-Band		Multi-Band		Multi-Band		Multi-Band
Dimensions	90H x 90W x 20D mm		90H x 90W x 94D mm		90H x 90W x 20D mm		90H x 90W x 94D mm
Weight	440 g		900 g		440 g		900 g

Specifications are subject to change without notice
