11PRONTO - Laser Power Probe (Touch Screen Controls)
雷射功率探測器（觸控螢幕操作）

 主要特色

  •  口袋尺寸設計
      這款中高功率手持式探棒體積極為精巧，小到可以放入口袋中。

  •  操作簡便
      採用彩色觸控式 LCD 螢幕，提供直覺式操作介面，只需輕觸螢幕按鍵即可完成量測。

  •  使用者可自訂設定
      可依應用需求設定波長、螢幕亮度及顯示方向，靈活配合不同測試環境。

  •  資料記錄功能
      可將量測資料儲存於內建記憶體，並透過 USB 介面將數據傳輸至電腦。

  •  寬功率量測範圍
      憑藉低雜訊設計與高損傷閾值吸收面，Pronto 可量測 1 W 至 250 W 的雷射功率。

  •  YAG 或 CO₂ 校正
      提供 248 nm 至 2.5 µm 全波段校正，並具備 10.6 µm 的典型校正值，支援多種雷射源。

  •  免手持操作設計
      可直接放置於平面上，或使用外殼上整合的兩個螺紋孔位，安全固定於光學支架上進行量測。

相關產品：

11MAESTRO	11UP19-H	11UP25

 Main Features

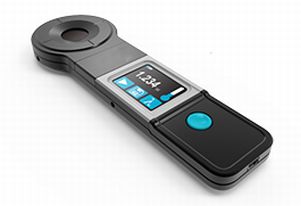

  •  Pocket-Size
      This mid to high power handheld probe is so compact it fits in your pocket!

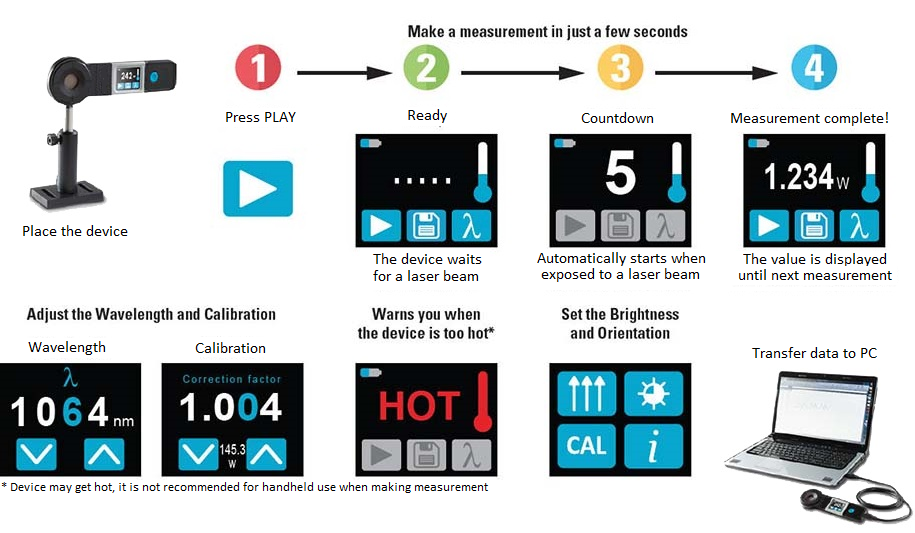

  •  Easy-to-Use
      The touch screen color LCD allows for a friendly user interface. You can make a measurement with just the touch
       of a button!

  •  User Setable
      You can set the wavelength, brightness and screen orientation to adapt to your application

  •  Data Logging
      Save your data to the internal memory and then transfer it to your PC over the USB connection.

  •  From Low to High Powers
      Thanks to a low noise level and high damage threshold, the Pronto can measure powers from 1 W to 250 W

  •  YAG or CO2 calibration
      Calibrated at every wavelength between 248 nm and 2.5 µm, with a typical value at 10.6 µm

  •  Hands-Free Operation
      Place it on a flat surface or use one of the 2 threaded holes that we have integrated in the casing for safe use with
      optical stands.
