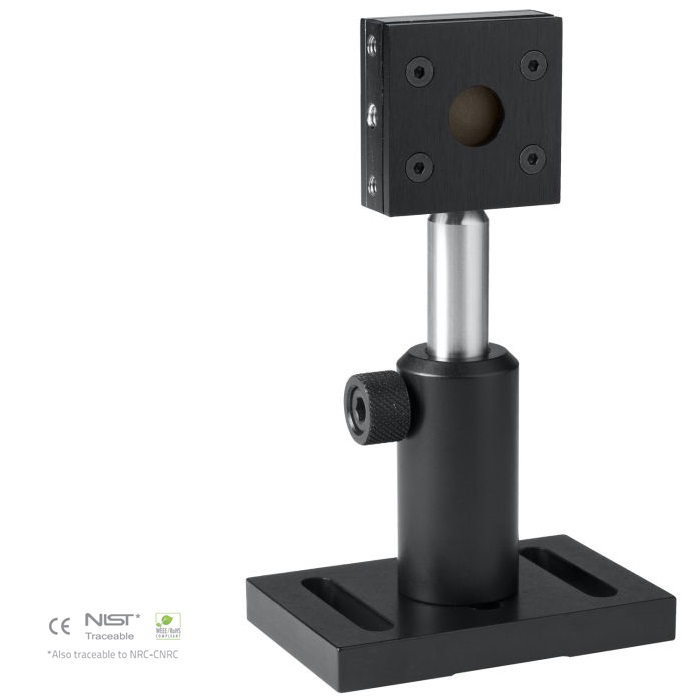

11UP12 - 雷射功率偵測器 Laser Power Detector

產品特色Features

11UP12 - Laser Power Detector 雷射功率偵測器

主要特色

• 模組化設計
可透過不同的冷卻模組提升偵測器的功率承受能力。

• 高效能表現
具備快速上升時間（0.3 秒）及高損傷閾值（36 kW/cm²）。

• 精巧設計
機身厚度僅 14 mm（10S 型號）。

• 能量量測模式
可量測單次脈衝能量最高達 5 焦耳。

• 智慧型介面
內建所有校正數據。

相容監測儀：

Main Features

• Modular Concept
Increase the power capability of your detector with different cooling modules

• High Performance
Fast Rise Time (0.3 sec), High Damage Threshold (36 kW/cm2)

• Compact Design
Only 14 mm thick (10S model)

• Energy Mode
Measure single shot energy up to 5 J

• Smart Interface
Containing all the calibration data

Compatible Monitors:

11MAESTRO

產品規格Specifications

Model	11UP12E-10S-H5	11UP12E-20H-H5		11UP12E-70W-H5
MAX AVERAGE POWER CONTINUOUS / 1 MINUTE)	10 W / 20 W	20 W / 40 W		70 W ^f / 110 W ^f
EFFECTIVE APERTURE	12 mm Ø	12 mm Ø		12 mm Ø
COOLING METHOD	Convection	Heatsink		Water-Cooled
MEASUREMENT CAPABILITY
Spectral Range *	0.19 – 20 µm	0.19 – 20 µm		0.19 – 20 µm
Noise Equivalent Power ^a	1 mW	1 mW		1 mW
Rise Time (nominal) ^b	0.3 sec	0.3 sec		0.3 sec
Sensitivity (typ into 100 kΩ load) ^c	0.53 mV/W	0.53 mV/W		0.53 mV/W
Calibration Uncertainty ^d	±2.5 %	±2.5 %		±2.5 %
Repeatability	±0.5 %	±0.5 %		±0.5 %
Energy Mode
Sensitivity	0.84 mV/J	0.84 mV/J		0.84 mV/J
Maximum Measurable Energy ^e	5 J	5 J		5 J
Noise Equivalent Energy ^a	0.02 J	0.02 J		0.02 J
Minimum Repetition Period	1.5 sec	1.5 sec		1.5 sec
Maximum Pulse Width	50 ms	50 ms		50 ms
Accuracy with energy calibration option	±5 %	±5 %		±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density ^g	36 kW/cm²	36 kW/cm²		36 kW/cm²
Pulsed Laser Damage Thresholds	Max Energy Density		Peak Power Density
1064 nm, 360 µs, 5 Hz	5 J/cm²		14 kW/cm²
1064 nm, 7 ns, 10 Hz	1 J/cm²		143 MW/cm²
532 nm, 7 ns, 10 Hz	0.6 J/cm²		86 MW/cm²
266 nm, 7 ns, 10 Hz	0.3 J/cm²		43 MW/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	12 mm Ø	12 mm Ø		12 mm Ø
Absorber (High Damage Threshold)	H5	H5		H5
Dimensions	38H x 38W x 14D mm	38H x 38W x 45D mm		38H x 38W x 32D mm
Weight (head only)	0.13 kg	0.15 kg		0.19 kg

Specifications are subject to change without notice
