11UP17 - 雷射功率偵測器 Laser Power Detector

產品特色Features

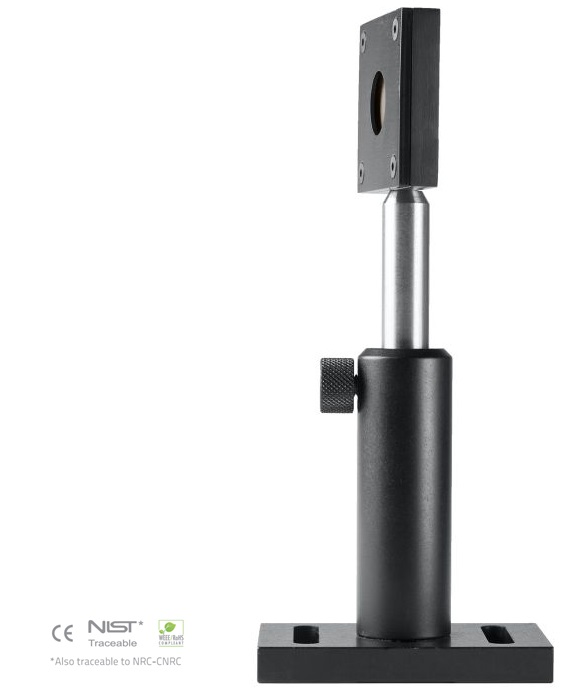

11UP17 - Laser Power Detector 雷射功率偵測器

主要特色

• 超薄外殼設計
厚度僅 10.7 mm。

•  兩種吸收層可供選擇
  H5：36 kW/cm²
  W5：高達 100 kW/cm² 的卓越耐受功率密度。

• 高功率／尺寸比
可進行 6 W 的連續功率量測。

• 能量量測模式
W5 型號可量測單次脈衝能量最高達 200 焦耳。

• 智慧型介面
內建所有校正數據。

相容監測儀：

Main Features

• Ultra Thin Casing
Only 10.7 mm thick!

• Choice Between 2 Absorbers
H5: 36 kW/cm2
W5: Unequalled 100 kW/cm2

• High Power To Size Ratio
6 W continuous reading

• Energy Mode
Measure single shot energy up to 200 J (with the W5 version)

• Smart Interface
Containing all the calibration data

Compatible Monitors:

11MAESTRO

產品規格Specifications

Model	11UP17P-6S-H5		11UP17P-6S-W5
MAX AVERAGE POWER CONTINUOUS / 1 MINUTE)	6 W / 7 W		6 W / 7 W
EFFECTIVE APERTURE	17 mm Ø		17 mm Ø
COOLING METHOD	Convection		Convection
MEASUREMENT CAPABILITY
Spectral Range *	0.19 – 20 µm		0.19 – 10 µm
Noise Equivalent Power ^a	1 mW		1 mW
Rise Time (nominal) ^b	0.8 sec		1.4 sec
Sensitivity (typ into 100 kΩ load) ^c	0.6 mV/W		0.6 mV/W
Calibration Uncertainty ^d	±2.5 %		±2.5 %
Repeatability	±0.5 %		±0.5 %
Energy Mode
Sensitivity	0.7 mV/J		0.2 mV/J
Maximum Measurable Energy ^e	15 J		200 J
Noise Equivalent Energy ^a	0.02 J		0.02 J
Minimum Repetition Period	4 sec		5 sec
Maximum Pulse Width	88 ms		133 ms
Accuracy with energy calibration option	±5 %		±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density ^f	36 kW/cm²		100 kW/cm²
Pulsed Laser Damage Thresholds	Max Energy Density	Peak Power Density	Max Energy Density	Peak Power Density
1064 nm, 360 µs, 5 Hz	5 J/cm²	14 kW/cm²	100 J/cm²	667 kW/cm²
1064 nm, 7 ns, 10 Hz	1 J/cm²	143 MW/cm²	1.1 J/cm²	157 kW/cm²
532 nm, 7 ns, 10 Hz	0.6 J/cm²	86 MW/cm²	1.1 J/cm²	157 kW/cm²
266 nm, 7 ns, 10 Hz	0.3 J/cm²	43 MW/cm²	0.7 J/cm²	27 kW/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	17 mm Ø		17 mm Ø
Absorber (High Damage Threshold)	H5		W5
Dimensions	46H x 46W x 10.7D mm		46H x 46W x 10.7D mm
Weight (head only)	0.1 kg		0.1 kg

Specifications are subject to change without notice
