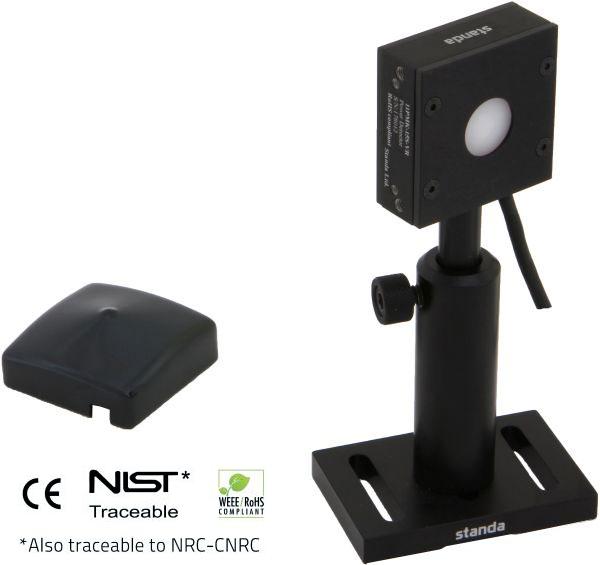

11UP19-H - 雷射功率偵測器 Laser Power Detector

11UP19-H - Laser Power Detector
Model: 11UP19
品牌:Standa

產品特色Features

11UP19-H - Laser Power Detector 雷射功率偵測器

11UP 系列偵測器在小巧的外型中即可承受高功率雷射輸入。它們可直接安裝於支桿、固定支架上，方形外殼也能讓您直接放置於桌面操作。11UP19-15S-H5 型號厚度僅 21 mm，非常適合用於雷射維修與保養應用。從數毫瓦到 15 瓦，它是同級中體積最小、結構最堅固且反應速度最快的偵測器。其吸收層可承受 36 kW/cm² 的平均功率密度，短時間內甚至可操作至 23 瓦。選配「能量量測模式（Energy Mode）」後，11UP19-H 系列的每一款機型皆可同時量測單次脈衝能量與平均功率。量測範圍涵蓋：Q 開關雷射 20 mJ 至 5 J，或長脈衝雷射最高可達 25 J。
11UP19-H 常用於以下雷射類型：CO₂、Ti:Sapphire、二極體雷射（脈衝或連續波）、YAG（半導體泵浦、連續波或高重複頻率）、Ruby（長脈衝）、DPSSL、Excimer 及氬離子雷射等。

主要特色

• 模組化設計
可透過五種不同冷卻模組擴充偵測器的功率承載能力。

• 高效能表現
上升時間快（0.6 秒），損傷閾值高達 45 kW/cm²。

• 精巧外型
15S 型號厚度僅 20.6 mm。

• 能量量測模式
可量測單次脈衝能量最高達 15 焦耳。

• 智慧型介面
內建所有校正數據。

相容監測儀：

相似產品：


11UP19-W	11QE12	11PH

The 11UP series detectors can take a lot of laser power in a small body. They come ready to mount on a rod, a bracket and the square case even lets you set them right on the table. The 11UP19-15S-H5, just 21 mm thin, is ideal for laser maintenance and service applications. From a few mW to 15 W it is the smallest, toughest and fastest detector in its class. The absorber handles 36 kW/cm² of average power density. You can even run it up to 23 watts for short periods. With Energy Mode option every member of 11UP19-H family can be equipped to measure single shot pulse energies as well as average power. From 20 mJ up to 5 J Q-switched or 25 J long pulse. 11UP19-H often used with CO2, Ti: sapphire, Diode (pulsed or CW), YAG (diode pumped, CW or high rep. rate), Ruby (long pulse), DPSSL, Excimer, Argom ion lasers.

Main Features

• Modular Concept
Increase the power capability of your detector with 5 different cooling modules

• High Performance
Fast Rise Time (0.6 sec), High Damage Threshold (45 kW/cm2)

• Compact Design
Only 20.6 mm thick (15S model)

• Energy Mode
Measure single shot energy up to 15 J

• Smart Interface
Containing all the calibration data

Compatible Monitors:

Similar products:


11UP19-W	11QE12	11PH

產品規格Specifications

Model	11UP19K-15S-H5	11UP19K-30H-H5	11UP19K-50L-H5	11UP19K-110F-H9	11UP19K-150W-H5	11UP19K-200W-H9
MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE)	15 W / 30 W	30 W/ 60 W	50 W / 90 W	110 W / 150 W	150 W ^f / 190 W ^f	200 W ^f / 200 W ^f
EFFECTIVE APERTURE	19 mm Ø	19 mm Ø	19 mm Ø	19 mm Ø	19 mm Ø	19 mm Ø
COOLING METHOD	Convection	Heatsink	Large Heatsink	Fan-Cooled	Water-Cooled	Water-Cooled
MEASUREMENT CAPABILITY
Spectral Range *	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm
Noise Equivalent Power ^a	1 mW	1 mW	1 mW	3 mW	1 mW	3 mW
Rise Time (nominal) ^b	0.6 sec	0.6 sec	0.6 sec	1.5 sec	0.6 sec	1.5 sec
Sensitivity (typ into 100 k Ω load) ^c	0.65 mV/W	0.65 mV/W	0.65 mV/W	0.23 mV/W	0.65 mV/W	0.23 mV/W
Calibration Uncertainty ^d	±2.5 %	±2.5 %	±2.5 %	±2.5 %	±2.5 %	±2.5 %
Repeatability	±0.5 %	±0.5 %	±0.5 %	±0.5 %	±0.5 %	±0.5 %
Energy Mode
Sensitivity	0.65 mV/J	0.65 mV/J	0.65 mV/J	0.23 mV/J	0.65 mV/J	0.23 mV/J
Maximum Measurable Energy ^e	15 J	15 J	15 J	25 J	15 J	25 J
Noise Equivalent Energy ^a	0.02 J	0.02 J	0.02 J	0.06 J	0.02 J	0.06 J
Minimum Repetition Period	4 sec	4 sec	4 sec	4 sec	4 sec	4 sec
Maximum Pulse Width	88 ms	88 ms	88 ms	88 ms	88 ms	88 ms
Accuracy with energy calibration option ±5 % ±5 % ±5 % ±5 % ±5 % ±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density ^g	36 kW/cm²	36 kW/cm²	36 kW/cm²	45 kW/cm²	36 kW/cm²	45 kW/cm²
Pulsed Laser Damage Thresholds	Max Energy Density			Peak Power Density
1064 nm, 360 µs, 5 Hz	5 J/cm² (H5), 9 J/cm² (H9)			14 kW/cm² (H5), 25 kW/cm² (H9)
1064 nm, 7 ns, 10 Hz	1 J/cm²			143 MW/cm²
532 nm, 7 ns, 10 Hz	0.6 J/cm²			86 MW/cm²
266 nm, 7 ns, 10 Hz	0.3 J/cm²			43 MW/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	19 mm Ø	19 mm Ø	19 mm Ø	19 mm Ø	19 mm Ø	19 mm Ø
Absorber (High Damage Threshold)	H5	H5	H5	H9	H5	H9
Dimensions	50H x 50W x 20.6D mm	50H x 50W x 56.3D mm	76.2H x 76.2W x 74.7D mm	54.2H x 54.2W x 55.6D mm	50H x 50W x 33D mm	50H x 50W x 33D mm
Weight (head only)	0.16 kg	0.21 kg	0.48 kg	0.25 kg	0.24	kg 0.24 kg

Specifications are subject to change without notice
