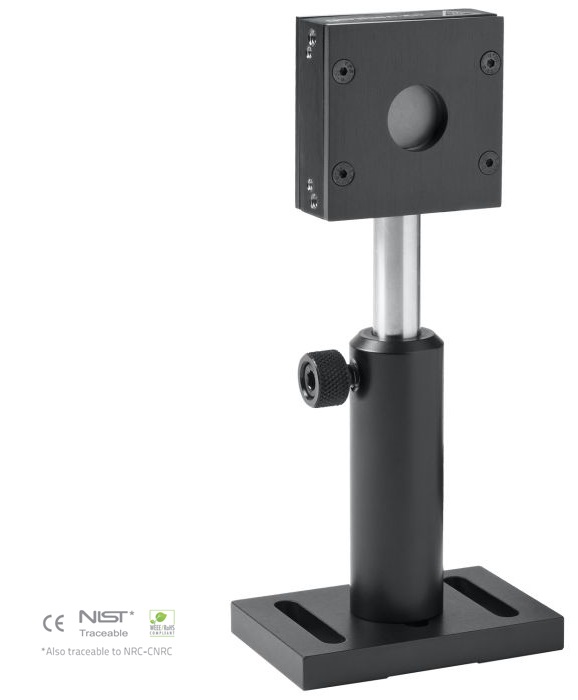

11UP19-VR - Laser Power Detector 雷射功率偵測器

主要特色

• 模組化設計
可透過 2 種不同冷卻模組，提升偵測器的功率承載能力。

• 高峰值功率體積式吸收層
適用於高能量密度光束。
平均功率密度可達 700 W/cm²，可防止因重複脈衝造成的吸收層劣化。

• 精巧設計
15S 型號厚度僅 21 mm。

• 能量量測模式
可量測單次脈衝能量最高達 40 焦耳。

• 智慧型介面
內建所有校正數據。

相容監測儀：

Main Features

• Modular Concept
Increase the power capability of your detector with 2 different cooling modules

•  Hight Peak Power Volume Absorber
  Perfect for high density beams
  Average power density of 700 W/cm² prevents degradation caused by repetitive pulses

• Compact Design
Only 21 mm thick (15S model)

• Energy Mode
Measure single shot energy up to 40 J

• Smart Interface
Containing all the calibration data

Compatible Monitors:

產品規格Specifications

Model	11UP19K-15S-VR	11UP19K-30H-VR
MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE)	15 W / 20 W	30 W / 35 W
EFFECTIVE APERTURE	18 mm Ø	18 mm Ø
COOLING METHOD	Convection	Heatsink
MEASUREMENT CAPABILITY
Spectral Range ^*a	0.3 – 2.5 µm	0.3 – 2.5 µm
Noise Equivalent Power ^b	2 mW	2 mW
Rise Time (nominal) ^c	2.5 sec	2.5 sec
Sensitivity (typ into 100 k Ω load) ^d	0.34 mV/W	0.34 mV/W
Calibration Uncertainty ^e	±2.5 %	±2.5 %
Repeatability	±0.5 %	±0.5 %
Energy Mode
Sensitivity	0.1 mV/J	0.1 mV/J
Maximum Measurable Energy ^f	40 J	40 J
Noise Equivalent Energy ^b	0.02 J	0.02 J
Minimum Repetition Period	4.5 sec	4.5 sec
Maximum Pulse Width	90 ms	90 ms
Accuracy with energy calibration option	±5 %	±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density ^g	700 W/cm²	700 W/cm²
Pulsed Laser Damage Thresholds	Max Energy Density	Peak Power Density
1064 nm, 360 µs, 10 Hz	40 J/cm²	111 kW/cm²
1064 nm, 7 ns, 10 Hz	6 J/cm²	860 MW/cm²
532 nm, 7 ns, 10 Hz	4 J/cm²	570 MW/cm²
266 nm, 7 ns, 10 Hz	1 J/cm²	143 MW/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	18 mm Ø	18 mm Ø
Absorber (Volume Absorber)	VR	VR
Dimensions	50H x 50W x 20.6D mm	50H x 50W x 56.3D mm
Weight (head only)	0.16 kg	0.21 kg

Specifications are subject to change without notice
