11UP25 - 雷射功率偵測器 Laser Power Detector

11UP25 - Laser Power Detector
Model: 11UP25
品牌:Standa

產品特色Features

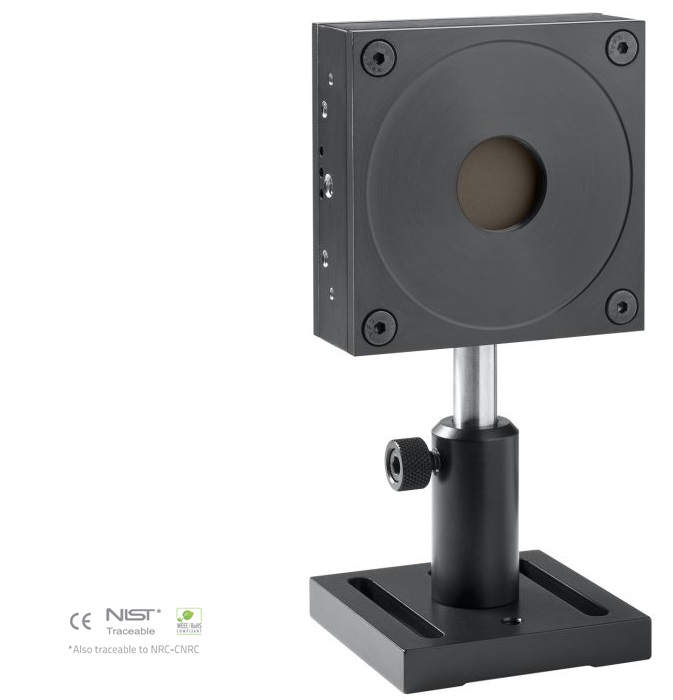

11UP25 - Laser Power Detector 雷射功率偵測器

主要特色

• 模組化設計
可透過 4 種不同冷卻模組，提升偵測器的功率處理能力。

• 高峰值功率體積式吸收層
具備快速上升時間（1.3 秒）及高損傷閾值（45 kW/cm²）。

• 精巧設計（T 型版本）
前端尺寸為 62.4 × 62.4 mm，厚度僅 38.1 mm，可持續量測高達 250 W 的連續功率。

• 能量量測模式
可量測單次脈衝能量最高達 40 焦耳。

• 智慧型介面
內含完整的校正資料。

相容監測儀：

Main Features

• Modular Concept
Increase the power capability of your detector with 4 different cooling modules

• Hight Performance
Fast Rise Time (1.3 sec), High Damage Threshold (45 kW/cm2)

• Compact Design (T version)
Only 62.4 x 62.4 mm front and 38.1 mm thick for up to 250 W continuous power

• Energy Mode
Measure single shot energy up to 40 J

• Smart Interface
Containing all the calibration data

Compatible Monitors:

產品規格Specifications

Model	11UP25N-40S-H9	11UP25N-100H-H9	11UP25N-250F-H12	11UP25M-350W-H12	11UP25T-15S-H12	11UP25T-250W-H12
MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE)	40 W / 80 W	100 W / 200 W	250 W / 300 W	350 W ^f / 350 W ^f	15 W / 15 W	250 W ^f / 250 W ^f
EFFECTIVE APERTURE	25 mm Ø	25 mm Ø	25 mm Ø	25 mm Ø	25 mm Ø	25 mm Ø
COOLING METHOD	Convection	Heatsink	Fan-Cooled	Water-Cooled	Convection	Water-Cooled
MEASUREMENT CAPABILITY
Spectral Range *	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm
Noise Equivalent Power ^a	3 mW	3 mW	10 mW	10 mW	10 mW	10 mW
Rise Time (nominal) ^b	1.3 sec	1.3 sec	1.3 sec	1.3 sec	1.3 sec	1.3 sec
Sensitivity (typ into 100 k Ω load) ^c	0.23 mV/W	0.23 mV/W	0.1 mV/W	0.1 mV/W	0.1 mV/W	0.1 mV/W
Calibration Uncertainty ^d	±2.5 %	±2.5 %	±2.5 %	±2.5 %	±2.5 %	±2.5 %
Repeatability	±0.5 %	±0.5 %	±0.5 %	±0.5 %	±0.5 %	±0.5 %
Energy Mode
Sensitivity	0.14 mV/J	0.14 mV/J	0.05 mV/J	0.05 mV/J	0.05 mV/J	0.05 mV/J
Maximum Measurable Energy ^e	40 J	40 J	40 J	40 J	40 J	40 J
Noise Equivalent Energy ^a	0.2 J	0.2 J	0.2 J	0.2 J	0.2 J	0.2 J
Minimum Repetition Period	4.6 sec	4.6 sec	11.5 sec	11.5 sec	11.5 sec	11.5 sec
Maximum Pulse Width	123 ms	123 ms	390 ms	390 ms	390 ms	390 ms
Accuracy with energy calibration option	±5 %	±5 %	±5 %	±5 %	±5 %	±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density
1064 nm, 10 W, CW	45 kW/cm²	45 kW/cm²	45 kW/cm²	45 kW/cm²	45 kW/cm²	45 kW/cm²
10.6 µm, 10 W, CW	14 kW/cm²	14 kW/cm²	14 kW/cm²	14 kW/cm²	14 kW/cm²	14 kW/cm²
Pulsed Laser Damage Thresholds	Max Energy Density			Peak Power Density
1064 nm, 360 µs, 5 Hz	9 J/cm²			25 kW/cm²
1064 nm, 7 ns, 10 Hz	1 J/cm²			143 MW/cm²
532 nm, 7 ns, 10 Hz	0.6 J/cm²			86 MW/cm²
266 nm, 7 ns, 10 Hz	0.3 J/cm²			43 MW/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	25 mm Ø	25 mm Ø	25 mm Ø	25 mm Ø	25 mm Ø	25 mm Ø
Absorber (High Damage Threshold)	H9	H9	H12	H12	H12	H12
Dimensions	89H x 89W x 32D mm	89H x 89W x 106D mm	89H x 89W x 116D mm	89H x 89W x 40D mm	62.4H x 62.4W x 38.1D mm	62.4H x 62.4W x 38.1D mm
Weight (head only)	0.68 kg	0.99 kg	1.44 kg	0.87 kg	0.31 kg	0.33 kg

Specifications are subject to change without notice
