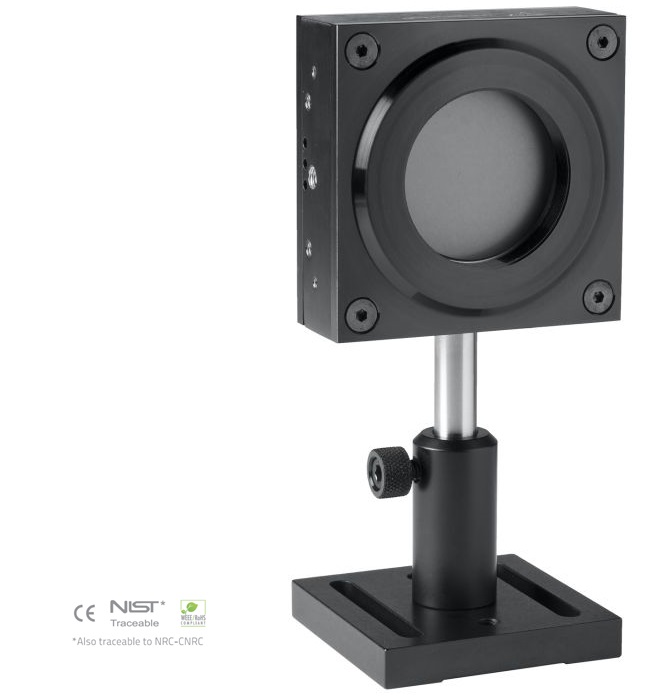

11UP50 - 雷射功率偵測器 Laser Power Detector

產品特色Features

11UP50 - Laser Power Detector 雷射功率偵測器

主要特色

• 模組化設計
可透過 4 種不同冷卻模組，提升偵測器的功率處理能力。

• 超高損傷閾值
平均功率密度可承受高達 100 kW/cm²。

• 大口徑設計
具備 50 mm 有效孔徑，非常適合量測大型雷射光束。

• 系列中最高能量量測能力
可量測單次脈衝能量最高達 500 焦耳。

• 智慧型介面
內含完整的校正資料。

相容監測儀：

Main Features

• Modular Concept
Increase the power capability of your detector with 4 different cooling modules

• Very High Damage Threshold
100 kW/cm2 in average power density

• Very Large Aperture
50 mm Ø effective aperture, perfect for the largest beams

• Highest Energy Readings In The Series
Measure single shot energy up to 500 J

• Smart Interface
Containing all the calibration data

Compatible Monitors:

11MAESTRO

產品規格Specifications

Model	11UP50N-40S-W9	11UP50N-50H-W9	11UP50N-50F-W9	11UP50M-50W-W9
MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE)	40 W / 80 W	50 W / 85 W	50 W / 85 W	50 W ^f / 85 W ^f
EFFECTIVE APERTURE	50 mm Ø	50 mm Ø	50 mm Ø	50 mm Ø
COOLING METHOD	Convection	Heatsink	Fan-Cooled	Water-Cooled
MEASUREMENT CAPABILITY
Spectral Range *	0.19 – 10 µm	0.19 – 10 µm	0.19 – 10 µm	0.19 – 10 µm
Noise Equivalent Power ^a	5 mW	5 mW	5 mW	5 mW
Rise Time (nominal) ^b	3.5 sec	3.5 sec	3.5 sec	3.5 sec
Sensitivity (typ into 100 kΩ load) ^c	0.12 mV/W	0.12 mV/W	0.12 mV/W	0.12 mV/W
Calibration Uncertainty ^d	±2.5 %	±2.5 %	±2.5 %	±2.5 %
Repeatability	±0.5 %	±0.5 %	±0.5 %	±0.5 %
Energy Mode
Sensitivity	0.02 mV/J	0.02 mV/J	0.02 mV/J	0.02 mV/J
Maximum Measurable Energy ^e	500 J	500 J	500 J	500 J
Noise Equivalent Energy ^a	0.25 J	0.25 J	0.25 J	0.25 J
Minimum Repetition Period	11.1 sec	11.1 sec	11.1 sec	11.1 sec
Maximum Pulse Width	467 ms	467 ms	467 ms	467 ms
Accuracy with energy calibration option	±5 %	±5 %	±5 %	±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density ^g	100 kW/cm²	100 kW/cm²	100 kW/cm²	100 kW/cm²
Pulsed Laser Damage Thresholds	Max Energy Density		Peak Power Density
1064 nm, 150 µs, 5 Hz	100 J/cm²		667 kW/cm²
1064 nm, 7 ns, 10 Hz	1.1 J/cm²		157 MW/cm²
532 nm, 7 ns, 10 Hz	1.1 J/cm²		157 MW/cm²
248 nm, 26 ns, 10 Hz	0.7 J/cm²		27 MW/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	50 mm Ø	50 mm Ø	50 mm Ø	50 mm Ø
Absorber (High Damage Threshold)	W9	W9	W9	W9
Dimensions	89H x 89W x 32D mm	89H x 89W x 106D mm	89H x 89W x 116D mm	89H x 89W x 40D mm
Weight (head only)	0.62 g	0.93 g	1.38 g	0.81 g

Specifications are subject to change without notice
