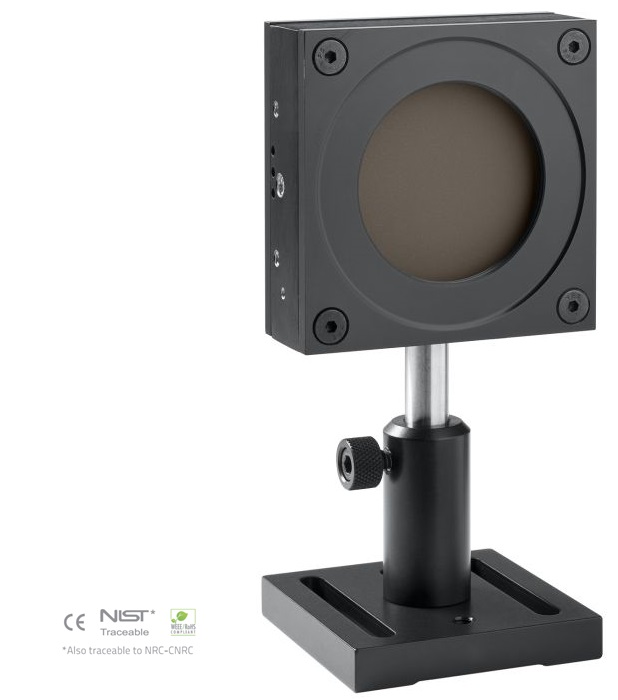

11UP55-H - Laser Power Detector 雷射功率偵測器

主要特色

• 模組化設計
可透過 5 種不同冷卻模組，提升偵測器的功率處理能力。

• 高效能表現
上升時間快（2 秒），具高損傷閾值（45 kW/cm²）。

• 精巧設計
厚度僅 32 mm（40S 型號）。

• 能量量測模式
可量測單次脈衝能量最高達 200 焦耳。

• 智慧型介面
內含完整的校正資料。

相容監測儀：

Main Features

• Modular Concept
Increase the power capability of your detector with 5 different cooling modules

• High Performance
Fast Rise Time (2 sec)
High Damage Threshold (45 kW/cm2)

• Compact Design
Only 32 mm thick (40S model)

• Energy Mode
Measure single shot energy up to 200 J

• Smart Interface
Containing all the calibration data

Compatible Monitors:

產品規格Specifications

Model	11UP55N-40S-H9	11UP55N-100H-H9	11UP55N-300F-H12	11UP55M-500W-H12
MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE)	40 W / 80 W	100 W / 200 W	300 W / 300 W	500 W ^f / 500 W ^f
EFFECTIVE APERTURE	55 mm Ø	55 mm Ø	55 mm Ø	55 mm Ø
COOLING METHOD	Convection	Heatsink	Fan-Cooled	Water-Cooled
MEASUREMENT CAPABILITY
Spectral Range *	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm	0.19 – 20 µm
Noise Equivalent Power ^a	5 mW	5 mW	15 mW	15 mW
Rise Time (nominal) ^b	2 sec	2 sec	2 sec	2 sec
Sensitivity (typ into 100 kΩ load) ^c	0.12 mV/W	0.12 mV/W	0.06 mV/W	0.06 mV/W
Calibration Uncertainty ^d	±2.5 %	±2.5 %	±2.5 %	±2.5 %
Repeatability	±0.5 %	±0.5 %	±0.5 %	±0.5 %
Energy Mode
Sensitivity	0.028 mV/J	0.028 mV/J	0.015 mV/J	0.015 mV/J
Maximum Measurable Energy ^e	200 J	200 J	200 J	200 J
Noise Equivalent Energy ^a	0.25 J	0.25 J	0.25 J	0.25 J
Minimum Repetition Period	11.1 sec	11.1 sec	12 sec	12 sec
Maximum Pulse Width	433 ms	433 ms	430 ms	430 ms
Accuracy with energy calibration option	±5 %	±5 %	±5 %	±5 %
DAMAGE THRESHOLDS
Maximum Average Power Density
1064 nm, 10 W, CW	45 kW/cm²	45 kW/cm²	45 kW/cm²	45 kW/cm²
10.6 µm, 10 W, CW	14 kW/cm²	14 kW/cm²	14 kW/cm²	14 kW/cm²
Pulsed Laser Damage Thresholds	Max Energy Density		Peak Power Density
1064 nm, 360 µs, 5 Hz	9 J/cm²		25 kW/cm²
1064 nm, 7 ns, 10 Hz	1 J/cm²		143 MW/cm²
532 nm, 7 ns, 10 Hz	0.6 J/cm²		86 MW/cm²
248 nm, 7 ns, 10 Hz	0.3 J/cm²		43 MW/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	55 mm Ø	55 mm Ø	55 mm Ø	55 mm Ø
Absorber (High Damage Threshold)	H9	H9	H12	H12
Dimensions	89H x 89W x 32D mm	89H x 89W x 106D mm	89H x 89W x 116D mm	89H x 89W x 40D mm
Weight (head only)	0.62 kg	0.93 kg	1.41 kg	0.81 kg

Specifications are subject to change without notice
