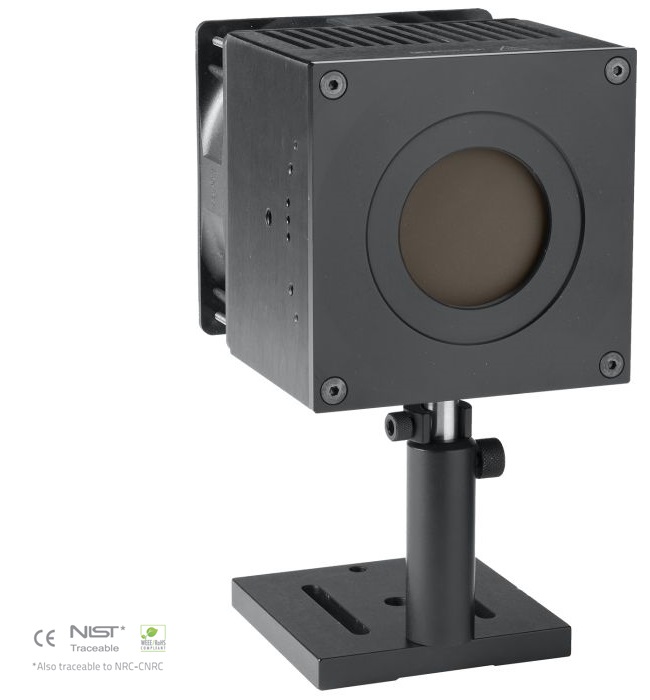

11UP55-HD - 雷射功率偵測器 Laser Power Detector

11UP55-HD - Laser Power Detector
Model: 11UP55
品牌:Standa

產品特色Features

11UP55-HD - Laser Power Detector 雷射功率偵測器

主要特色

• 高功率密度吸收層
HD 吸收層是目前市場上最強大的設計，適用於高功率應用，兼具高平均功率處理能力與高功率密度耐受性能。

• UP55G-600F-HD – 免水冷系統
市場上獨一無二的設計，可量測高達 600 W 的連續雷射功率，無需水冷系統。只要插上風扇即可開始使用。

• UP55M-700W-HD – 高速且精巧
一款非常精巧的偵測器，可量測最高 700 W 的連續輸出功率。

• UP55C-2.5KW-HD – 高效能與高速回應的經濟型方案
可同時量測極低與極高功率（最高可達 2500 W），具備快速響應時間。這款緊湊且多功能的偵測器，是市場上最具性
價比的高功率量測方案。

相容監測儀：

Main Features

• High Density Absorber
The HD absorber is the strongest on the market for use at high powers, presenting both high average power
handling and high power density capabilities

• UP55G-600F-HD - No Need For Water Cooling
Unique on the market, measure 600 W of continuous power WITHOUT THE NEED FOR WATER-COOLING. Just
plus the fan and you are ready to go!

• UP55M-700W-HD - Fast And Compact
A very compact detector that measures up to 700 W of continuous power.

• UP55C-2.5KW-HD - Performance And Speed At a Low Price
Measures both very low and very high powers (up to 2500W) with a fast response time. A compact and versatile
detector that is more affordable thanany other high power solution on the market.

Compatible Monitors:

產品規格Specifications

Model	11UP55G-600F-HD	11UP55M-700W-HD		11UP55C-2.5KW-HD
MAX AVERAGE POWER (CONTINUOUS / 1 MINUTE)	600 W / 600 W	700 W ^f / 700 W		^f 2 500 W / 2 500 W
EFFECTIVE APERTURE	55 mm Ø	55 mm Ø		55 mm Ø
COOLING METHOD	Fan-Cooled	Water-Cooled		Water-Cooled
MEASUREMENT CAPABILITY
Spectral Range *	0.19 – 20 µm	0.19 – 20 µm		0.19 – 20 µm
Noise Equivalent Power ^a	45 mW	45 mW		200 mW
Rise Time (nominal) ^b	2.8 sec	2 sec		3.5 sec
Sensitivity (typ into 100 kΩ load) ^c	0.03 mV/W	0.03 mV/W		8 µV/W
Calibration Uncertainty ^d	±2.5 %	±2.5 %		±2.5 %
Repeatability	±0.5 %	±0.5 %		±0.5 %
Energy Mode
Sensitivity	0.008 mV/J	0.008 mV/J		---
Maximum Measurable Energy ^e	200 J	200 J		---
Noise Equivalent Energy ^a	0.25 J	0.25 J		---
Minimum Repetition Period	12 sec	12 sec		---
Maximum Pulse Width	430 ms	430 ms		---
Accuracy with energy calibration option	±5 %	±5 %		---
DAMAGE THRESHOLDS
Maximum Average Power Density
1064 nm, 10 W, CW	45 kW/cm²	45 kW/cm²		45 kW/cm²
1064 nm, 500 W, CW	8 kW/cm²	8 kW/cm²		9 kW/cm²
1064 nm, 2 500 W, CW	---	---		6 kW/cm²
Pulsed Laser Damage Thresholds	Max Energy Density		Max Power Density
1064 nm, 360 µs, 5 Hz	9 J/cm²		25 kW/cm²
1064 nm, 7 ns, 10 Hz	1 J/cm²		143 MW/cm²
532 nm, 7 ns, 10 Hz	0.6 J/cm²		86 MW/cm²
266 nm, 7 ns, 10 Hz	0.3 J/cm²		43 MW/cm²
PHYSICAL CHARACTERISTICS
Effective Aperture	55 mm Ø	55 mm Ø		55 mm Ø
Absorber (High Damage Threshold)	HD	HD		HD
Dimensions	120H x 120W x 135D mm	89H x 89W x 40D mm		116H x 116W x 48D mm
Weight (head only)	2.75 kg	0.90 kg		1.95 kg

Specifications are subject to change without notice
