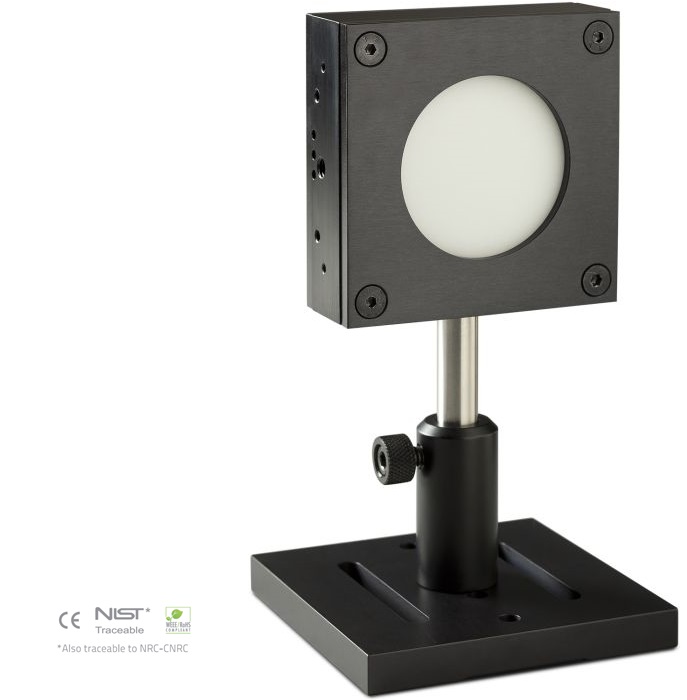

11UP55-VR - 雷射功率偵測器 Laser Power Detector

11UP55-VR - Laser Power Detector
Model: 11UP55
品牌:Standa

產品特色Features

11UP55-VR - Laser Power Detector 雷射功率偵測器

主要特色

• 模組化設計
可透過 4 種不同冷卻模組，提升偵測器的功率處理能力。

• 高峰值功率體積式吸收層
專為高功率密度光束設計，平均功率密度達 700 W/cm²，可防止因重複脈衝造成的吸收層劣化。

• 大面積入射孔徑
52 mm 直徑的有效孔徑，可容納大型雷射光束。

• 高平均功率處理能力
使用水冷模組時，可量測最高達 300 W 的連續雷射功率。

• 智慧型介面
內含完整校正數據，確保精準量測。

相容監測儀：

Main Features

• Modular Concept
Increase the power capability of your detector with 4 different cooling modules

• High Peak Power Volume Absorber
Perfect for high density beams
Average power density of 700 W/cm2 prevents degradation caused by repetitive pulses

• Large Aperture
52 mm Ø aperture accomodates the largest beams

• High Average Power
Up to 300 W of continuous power with the water-cooled unit

• Energy Mode
Measure single shot energy up to 1000 J

• Smart Interface
Containing all the calibration data

Compatible Monitors:

產品規格Specifications

Model	11UP52N-50S-QED	11UP52N-100H-QED	11UP52N-150F-QED	11UP52M-300W-QED
Maximum average power (continuous / 1 minute)	50 W / 50 W	100 W / 100 W	150 W / 150 W	300 W ^a) / 300 W ^a)
Noise Equivalent Power ^b)	15 mW
Spectral Range ^c)	0.266 – 2.5 µm
Typical rise time ^d)	4 sec
Power calibration uncertainty ^e)	±2.5 %
Repeatability	±0.5 %
MEASUREMENT CAPABILITIES (ENERGY MODE)
Maximum measurable energy ^f)	1000 J
Noise equivalent energy ^g)	0.25 J
Minimum repetition period	9 s
Maximum pulse width	371 ms
Energy calibration uncertainty ^h)	±5 %
DAMAGE THRESHOLDS
Maximum average power density ⁱ⁾	100 kW/cm²
Maximum energy density^j)	8 J/cm²
PHYSICAL CHARACTERISTICS
Cooling	Convection	Convection (heatsink)	Fan	Water
Aperture diameter	52 mm
Absorber	QED
Weight	89H x 89W x 32D mm	89H x 89W x 106D mm	92H x 92W x 117D mm	89H x 89W x 43D mm
Cooling	0.62 kg	0.93 kg	1.41 kg	0.84 kg
