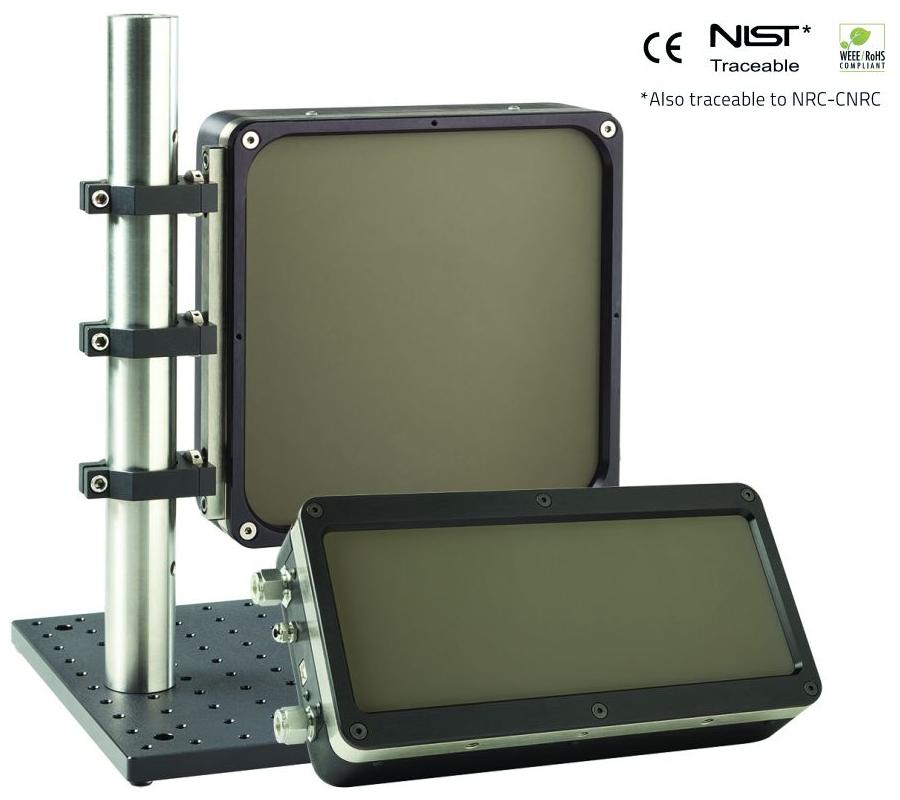

- 11SUPER-HP - High Power Detector
- Model: 11HP
- 品牌:Standa
11SUPER-HP - High Power Detector 高功率雷射偵測器
主要特色
• 最高功率承受能力
客製化機型可量測高達 25,000 W 的連續功率，如有更高功率需求，可依客戶要求訂製。
• 讀值穩定
相比市場上其他高功率水冷式功率計，對冷卻水溫度變化的敏感度更低，確保量測穩定。
• 客製化
1. 選擇您的偵測器尺寸
2. 選擇您的最大功率範圍
3. 我們將為您量身打造專屬偵測器
• 輕巧緊湊設計
採用獨特結構設計，使其重量更輕、體積更小，是市面上最緊湊的高功率偵測器之一。
• 可直接以 USB 連接電腦
每個感測頭皆配備 DB-15 接頭（可搭配 Standa 顯示器使用）以及 USB 2.0 輸出，可直接連接至電腦。其他接頭形式可
依需求提供。
相容監測儀：
 11MAESTRO |
 11UNO |
 11TUNER |
 11M-LINK |
 11P-Link |
 11S-LINK |
Main Features
• The Highest Power Handling
Custom models handle up to 25 000 W of continuous power. Higher powers are available upon request
• Stable Reading
Less sensitive to variations in water cooling temperature than any other high power water-cooled meter on the
market
• Infinite Customization Capabilities
1. Choose YOUR size
2. Choose YOUR maximum power
3. We will customize one just for you!
• Compact and Light Weight
Lighter and more compact than any other high power detector on the market, thanks to our unique design
• Direct USB Connection to a PC
Each head comes with both a DB-15 connector (for use with a Standa monitor) and a USB2.0 output for direct
connection to a PC. Other connectors available upon request
Compatible Monitors:
11MAESTRO |
11UNO |
11TUNER |
11M-LINK |
11P-Link |
11S-LINK |
| Model (custom built) | 11HP280/100A-10KW-HD | 11HP210A-25KW-HD |
| Max average power (continuous / 5 minute) | 10 000 W / 10 000 W | 25 000 W / 25 000 W |
| Effective aperture | 280 x 100 mm | 210 x 210 mm |
| Cooling method | Water-Cooled | Water-Cooled |
| MEASUREMENT CAPABILITY | ||
| Spectral Range | 0.19 - 20 µm | 0.19 - 20 µm |
| Noise Equivalent Power 1 | ±10 W | ±10 W |
| Minimum Average Power 2 | 300 W | 300 W |
| Rise Time (nominal) | 20 sec | 25 sec |
| Sensitivity (typ into 100 kΩ load) | 0.2 mV/W | 0.08 mV/W |
| Calibration Uncertainty | ||
| @ 1064 nm | ±5 % | ±5 % |
| @ 810 nm | ±6 % | ±6 % |
| Repeatability | ±2 % | ±2 % |
| Linearity with Power | ±2 % | ±2 % |
| Linearity vs Beam Diameter 3 | ±2 % | ±2 % |
| DAMAGE THRESHOLDS | ||
| Maximum Average Power Density 4 | ||
| 10 kW | 2.5 kW/cm<sup2< sup=""> | 2.5 kW/cm2 |
| 25 kW | --- | 0.25 kW/cm2 |
| PHYSICAL CHARACTERISTICS | ||
| Effective Aperture | 280 x 100 mm | 210 x 210 mm |
| Absorber (High Damage Threshold) | HD | HD |
| Required Cooling Flow | (6 - 10) LPM < ±1 LPM/min 5 | (12 - 15) LPM < ±1 LPM/min 5 |
| Temperature of Cooling Water | (15 - 25) °C < ±1°C/min 5 | (15 - 25) °C < ±1°C/min 5 |
| Output Connectors | DB-15 cable & USB port | DB-15 cable & USB port |
| PCB Electrical Supply | Through USB or Standa monitors | Through USB or Standa monitors |
| Maximum Output Signal | 2 V | 2 V |
| Dimensions | 152H x 305W x 75D mm | 229H x 229W x 80D mm |
| Weight (head only) | 11 kg | 16 kg |
