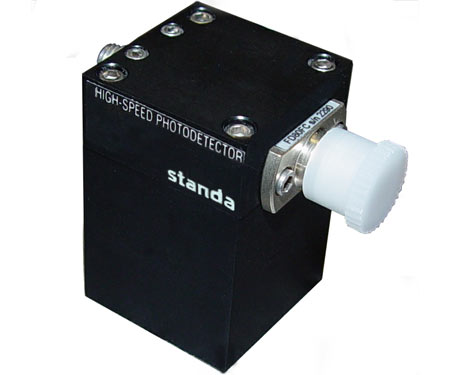

11HSP - High-speed Photodetectors  高速光偵測器

 主要特色

  •  僅採用具備吉赫頻寬（GHz-bandwidth）等級的高品質元件製成，用於這些高速光偵測器中

  •  透過阻抗匹配的微帶線（microstrip line），將光二極體的輸出訊號耦合至輸出端連接器

  •  使用具微波等級品質的 SMA 電磁波連接器，將訊號傳輸至示波器

  •  每一個偵測器皆以 20 GHz 採樣示波器進行測試，並僅在因振鈴造成的峰對峰失真低於 4% 時才通過驗證

 Main Features

  •  Only gigahertz-bandwidth qualified components are used in those high-speed photodetectors

  •  An impedance matched microstrip line is used to couple the diode’s output to the output connector

  •  A microwave quality SMA electro-magnetic wave launcher is used to couple the signal to the scope

  •  Each detector is tested using a 20-Ghz sampling scope and passed only if the peak-to-peak distortion due to
       ringing is <4%

   Custom optical fiber cables available separatelly. Please contact us for more details.

Specifications :

Afterpulse ringing (% of maximum)		<20
Fiber input receptacle		FC
Output impedance		50 Ohms
Maximum safe output		2 V
Battery power supply		20 V
Battery shelf life		~5 years
Photodetectors Dimensions		25 x 25 x 38 mm
