- 高效能波長轉換模組 HM
- 高效能波長轉換模組 HM

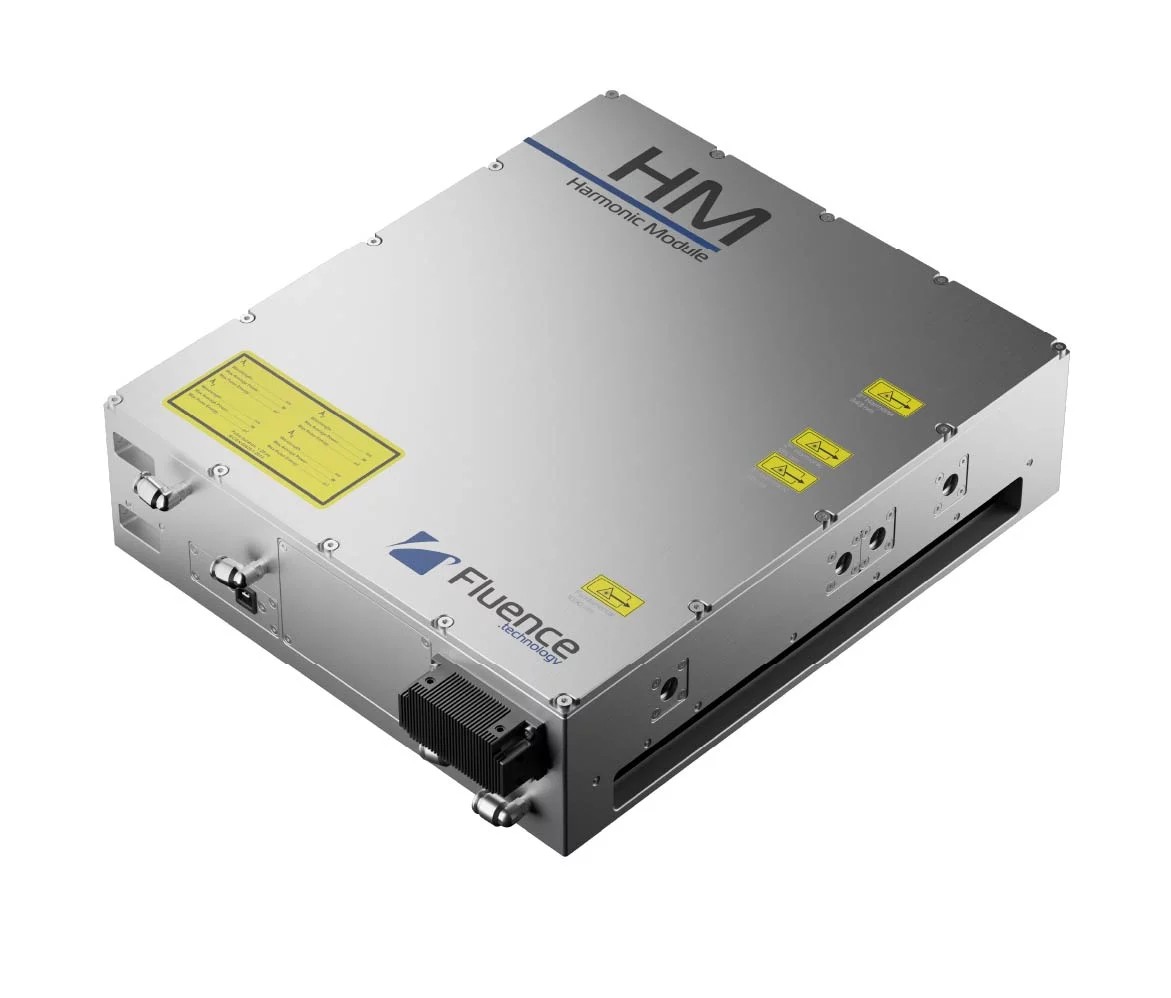

- Model: Harmonic Module
- 品牌:Fluence
Harmonic Module 為高效能波長轉換模組，支援四組軟體可切換輸出（含 DUV 深紫外波段），並具備自動光束調整功能，確保穩定且精準的波長轉換。
模組採氣體保護與密封式結構設計，延長使用壽命並維持功率穩定，可直接安裝於雷射頭或整合至 OEM，並支援光束直徑與輸出規格客製化。
- Features:
1. Up to 4 switchable wavelengths in one box for unlimited flexibility: 1030 nm, 515 nm, 343 nm, 258 nm
2. High conversion efficiency and short pulse duration < 300 fs
3. Customizable outputs – unused harmonic outputs as a multichannel IR beam switch
4. Fully automated conversion efficiency control
5. Advanced automation for long term power stability
- Applications :
1. Micromachining
2. Polymer cutting
3. Surface structuring and activation
4. Ophthalmology
5. Semiconductor & OLED manufacturing
6. Solar cell manufacturing
7. Stents and medical device manufacturing
8. Microprocessing with micrometer-level precision
9. Microperforation
10. Micromarking
| Model | Harmonic Module | |||
| Max Pump Power | < 60 W | |||
| Pump Pulse Energy | < 200 µJ | |||
| Available Outputs | Port #1 | Port #2 | Port #3 | Port #4 |
| Configuration Example 1 | 1030 nm | 515 nm | – | – |
| Configuration Example 2 | 1030 nm | 515 nm | 343 nm | – |
| Configuration Example 3 | 1030 nm | 515 nm | 343 nm | 258 nm |
| Configuration Example 4 | 1030 nm | 515 nm | 1030 nm | 1030 nm |
| Configuration User Defined | 1030 nm | – | 343 nm | – |
| User Configuration | Output configuration upon request (ask for details) | |||
| Conversion Efficiency | – | > 40% (~50% typ.) | > 20% (~30% typ.) | ask for details |
| Pulse Energy | – | < 100 µJ | < 50 µJ | ask for details |
| Pulse Duration | < 300 fs | |||
| Power Stability, 24h | – | < 1% | < 1% | ask for details |
| Beam Diameter | 2.5 ± 0.5 mm (other upon request) | |||
| Conversion Efficiency Adjustment | Fully automated, software controlled | |||
| Wavelength Switching | Fully automated, software controlled | |||
| Closed Loop Power Stabilization | ask for details | |||
| Dimensions (L x W x H) | 320 x 393 x 88.3 mm | |||
| Housing | Sealed Enclosure, Prepared for Gas Purging | |||
| Control | GUI (USB) | |||
由於產品不斷改進，所有規格會有所更改，詳情請與我們聯繫。
