4Lasers standard Brewster-type thin-film polarizers are designed to be used for applications, which include polarization separation. These elements provide moderately extinction ratio Tp:Ts > 200:1 and perfectly fit for high-power and UV applications. 4Lasers design and manufacture standard and custom Brewster type polarizers in the range of 230 nm and 2000 nm with face dimensions up to 160 mm.
Main features
- Substrates fabricated from high-quality UV grade fused silica optical glass
- Designed for most popular laser line and harmonics wavelengths
- Angle of incidence: Brewster-angle

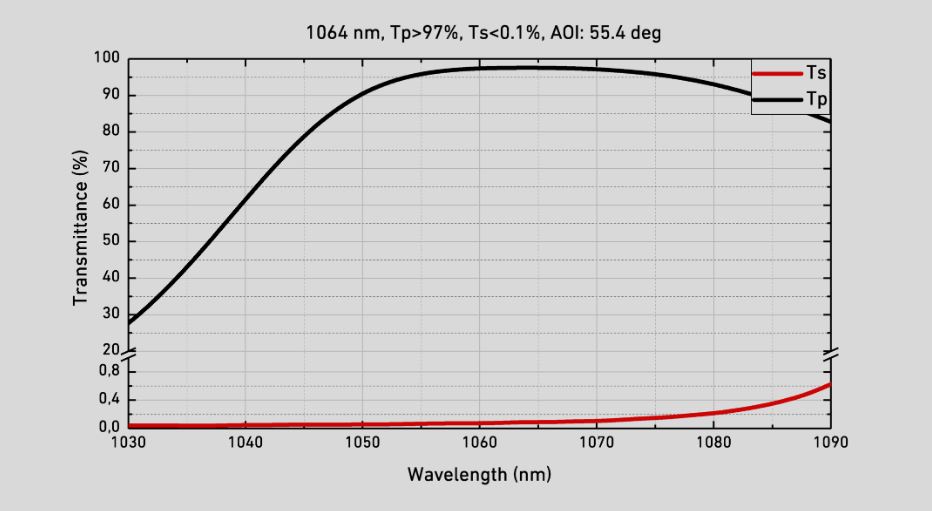

- Typical extinction ratio Tp:Ts > 200:1
- Custom dimensions, operating wavelength available upon request
Application examples
- Polarization separation
- Optical isolation
- Polarization cleaning
- Laser power attenuation
